CBP4-836C+ - Mini-Circuits

Description: 836MHz Center Band Pass Ceramic Filter 25 MHz 50Ohm 13-SMD Module

Download CBP4-836C+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

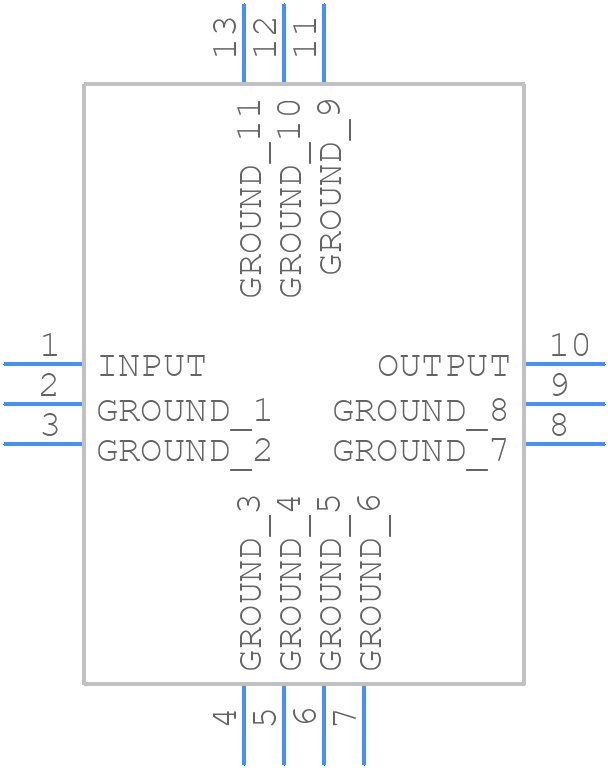

CBP4-836C+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

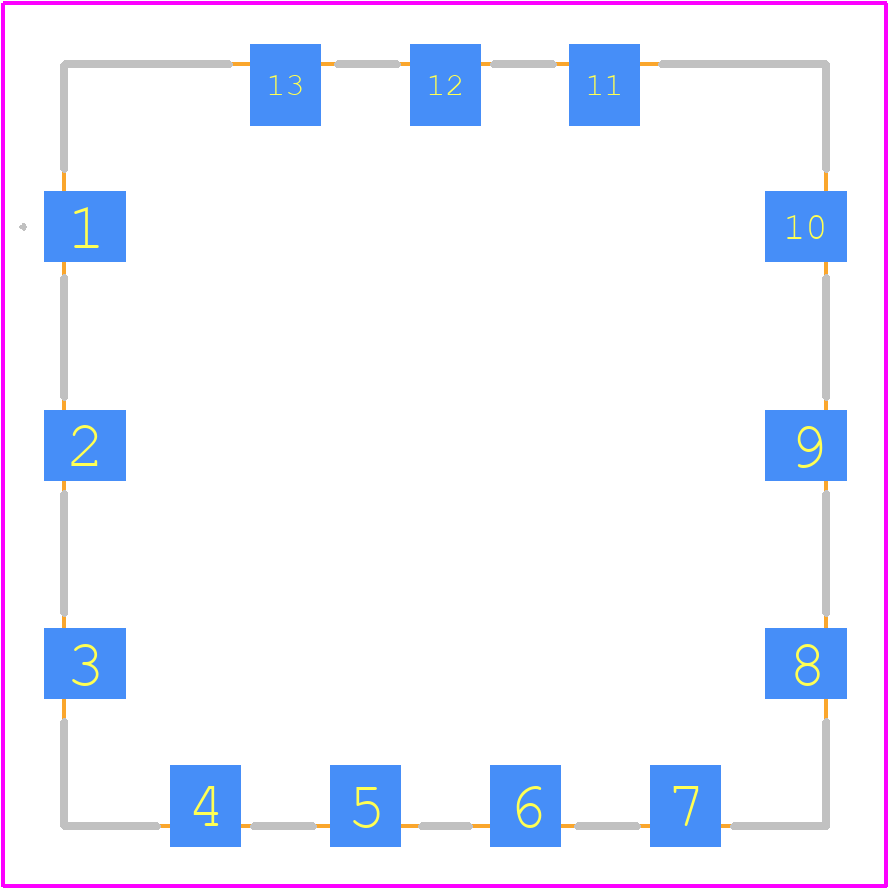

CBP4-836C+ - Mini-Circuits PCB footprint - Other - Other - CBP4-836C+-1
click to zoom
3D Models
CBP4-836C+ - Mini-Circuits - 3D model - Other - CBP4-836C+-1
click to zoom

CBP4-836C+ Details

  • Manufacturer Part Number:

    CBP4-836C+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.49

  • Average Input Power:

    5 W

  • Center or Cutoff Frequency (fo/fc):

    836 MHz

  • Filter Type:

    CERAMIC BPF

  • Height:

    5.33 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.7 dB

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • VSWR:

    1.67

  • Width:

    19.05 mm

CBP4-836C+ Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the DC path is 50V, but it's recommended to operate at 30V or less for optimal performance and reliability.
  • No, the CBP4-836C+ is designed for low-power applications. It's not suitable for high-power applications due to its limited power handling capability.
  • For optimal performance, it's recommended to follow the PCB layout guidelines provided in the application note, including keeping the RF path as short as possible, using a solid ground plane, and minimizing vias and bends.
  • While the CBP4-836C+ is specified up to 6 GHz, it may still work at higher frequencies, but with reduced performance and potential degradation of the insertion loss and return loss. It's recommended to consult with Mini-Circuits' application engineers for specific guidance.
  • The operating temperature range for the CBP4-836C+ is -40°C to +85°C, but it's recommended to operate within a narrower range (e.g., 0°C to 70°C) for optimal performance and reliability.
