CBS1002405-T - Cosel

Description: Cosel 100W Isolated DC-DC Converter, Vin 18 → 36 V, Vout 5V, I/O isolation 1500V

Download CBS1002405-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

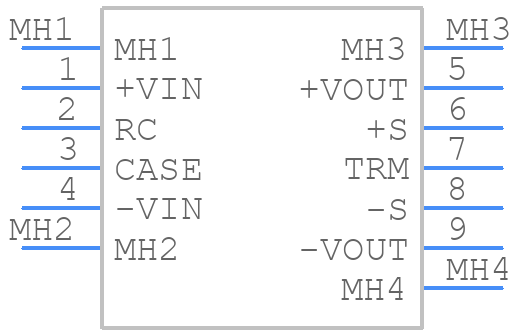

CBS1002405-T - Cosel - PCB symbol
click to zoom
PCB Footprints

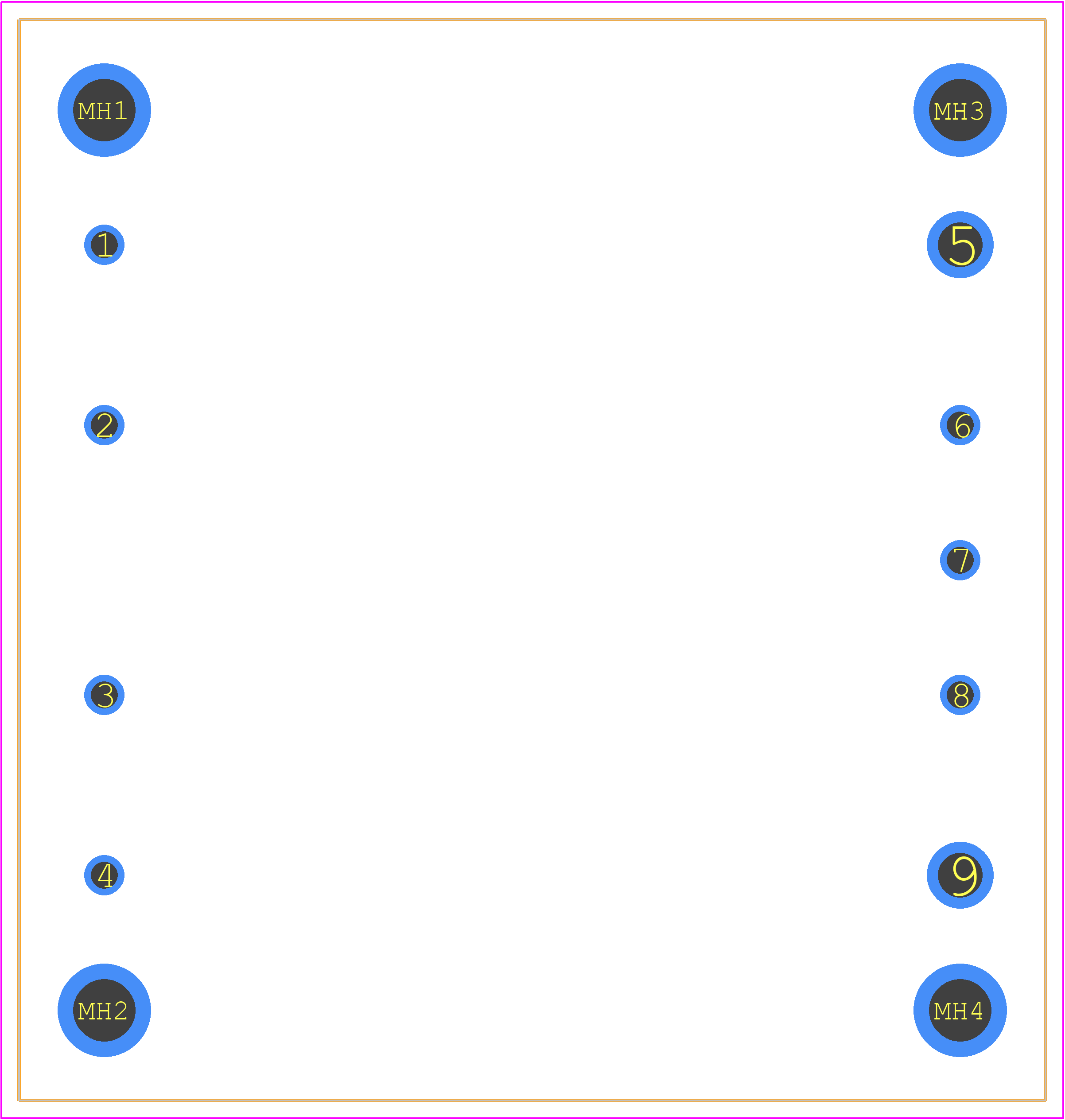

CBS1002405-T - Cosel PCB footprint - Other - Other - CBS1002405-T-1
click to zoom
3D Models
CBS1002405-T - Cosel - 3D model - Other - CBS1002405-T-1
click to zoom

CBS1002405-T Details

  • Manufacturer Part Number:

    CBS1002405-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, TUV, UL

  • Efficiency (Main Output):

    83%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Ripple Voltage (Main Out):

    0.02828 Vrms

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

CBS1002405-T Frequently Asked Questions (FAQs)

  • Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and avoid blocking the airflow vents.
  • Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and consider adding EMI filters or shielding if necessary. Consult the Cosel application note for EMC guidelines.
  • The maximum allowable capacitance is 220uF. Exceeding this value may affect the converter's stability and performance. Consult the datasheet for recommended capacitor values and types.
  • The CBS1002405-T is rated for operation up to 5,000 meters (16,400 ft) and 80°C ambient temperature. Derating may be necessary for higher altitudes or temperatures. Consult Cosel's environmental specifications and application notes for guidance.
  • Cosel recommends a fuse rating of 5A to 10A, depending on the input voltage and current. Use a slow-blow fuse (e.g., Littlefuse 5A or equivalent) to ensure reliable operation.
