CBS1002412 - Cosel

Description: Isolated DC/DC Converters 100W 12V 8.4A TH - HALF BRICK

Download CBS1002412 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

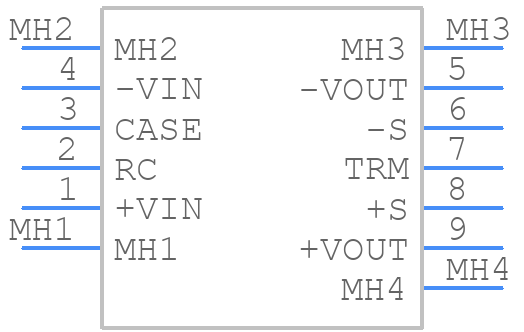

CBS1002412 - Cosel - PCB symbol
click to zoom
PCB Footprints

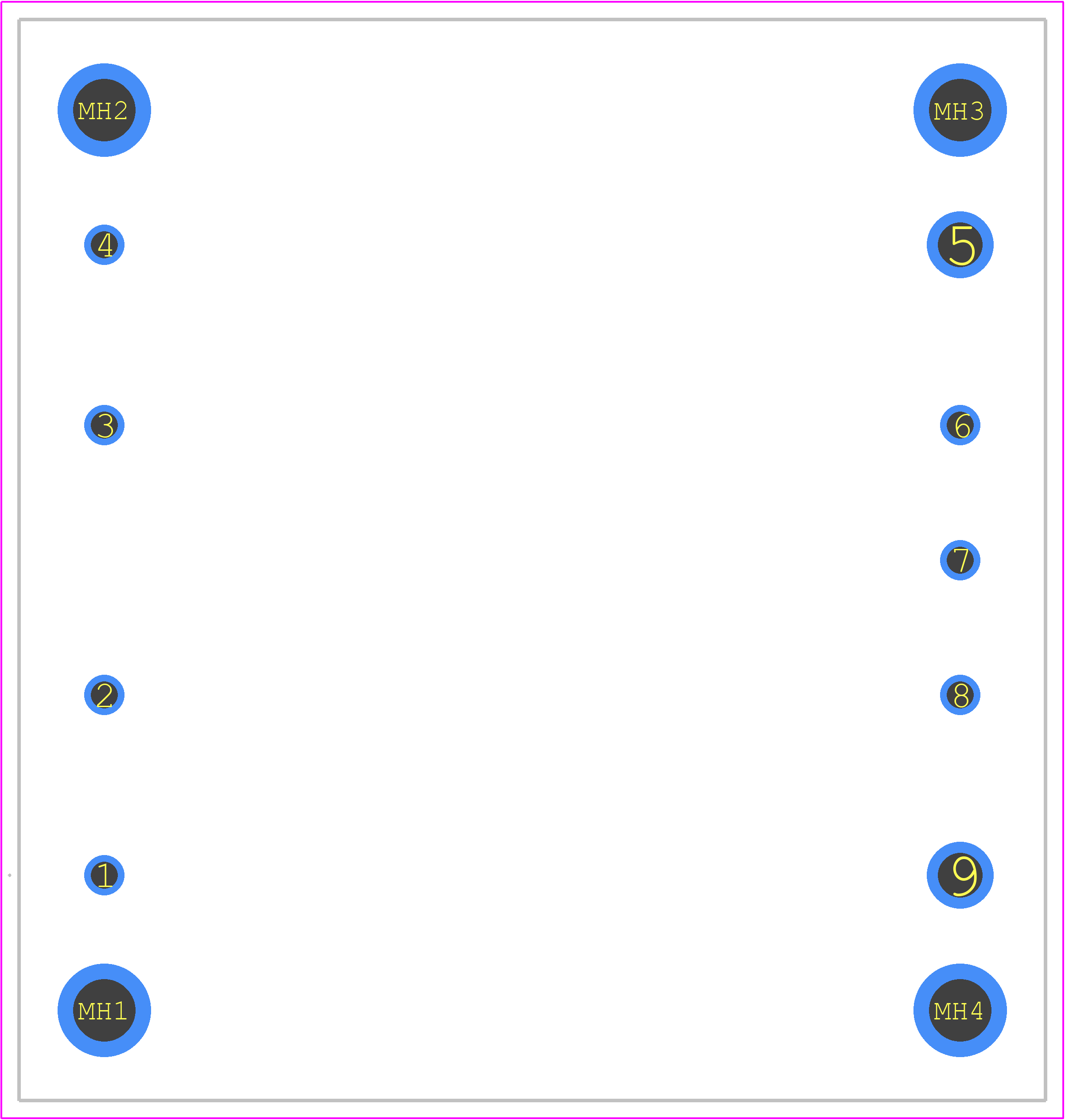

CBS1002412 - Cosel PCB footprint - Other - Other - CBS1002412-2
click to zoom
3D Models
CBS1002412 - Cosel - 3D model - Other - CBS1002412-2
click to zoom

CBS1002412 Details

  • Manufacturer Part Number:

    CBS1002412

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    0

  • Additional Feature:

    LG-MAX; WD-MAX

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, TUV, UL

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8.4 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    100.8 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

CBS1002412 Frequently Asked Questions (FAQs)

  • Cosel recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 1 inch x 1 inch of copper area is recommended for heat sinking.
  • Cosel recommends following the CISPR 22 and EN 55022 standards for EMC compliance. Ensure proper grounding, use of EMI filters, and shielding to minimize electromagnetic interference.
  • The derating curve is available upon request from Cosel. It shows the reduction in output power as a function of temperature. For example, at 50°C, the output power may be derated by 10% to ensure reliable operation.
  • Yes, the CBS1002412 can be used in redundant or N+1 configurations. However, it's essential to ensure proper synchronization and control of the modules to prevent unwanted interactions.
  • The MTBF of the CBS1002412 is calculated to be >1 million hours, based on MIL-HDBK-217F calculations. This ensures high reliability and long-term operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBS1002412 Overview

Use the download button to access the CBS1002412 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBS10, or try a keyword search, such as Power Supply Modules
