The recommended PCB footprint for CBT3125PW,118 is a standard SOT23-6 package with a 1.3mm x 1.3mm body size. The recommended land pattern is available in the Nexperia's package outline drawing document.
To ensure reliability in high-temperature applications, follow the recommended derating guidelines for the device's power dissipation, and ensure proper thermal management, such as using a heat sink or thermal pad, and maintaining a safe junction temperature (Tj) below 150°C.
The maximum allowed voltage on the enable pin (EN) of the CBT3125PW,118 is 6V, which is the maximum rating for the logic input voltage. Exceeding this voltage may cause damage to the device.
While the CBT3125PW,118 is a standard buffer gate, it's essential to review the specific datasheet and application notes for the device you're considering replacing. Ensure the pinout, voltage, and current ratings, as well as the logic functionality, are compatible before making a substitution.
To troubleshoot issues with the CBT3125PW,118, start by reviewing the device's datasheet and application notes. Check the power supply voltage, input signals, and output loads. Use a logic analyzer or oscilloscope to verify the input and output signals. If the issue persists, consult Nexperia's support resources or contact their technical support team.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CBT3125PW,118 Overview

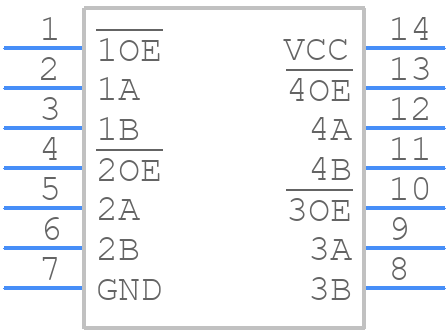

Use the download button to access the CBT3125PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBT31,
or try a keyword search, such as Bus Driver/Transceivers
