CBTD3861PW,118 - Nexperia

Description: CBTD3861 - 10-bit level shifting bus switch with output enable@en-us

Download CBTD3861PW,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

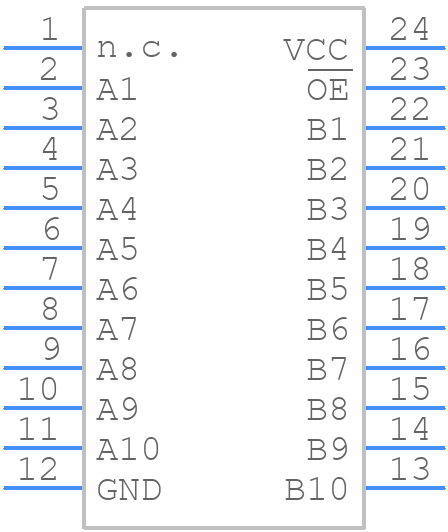

Symbol
CBTD3861PW,118 - Nexperia - PCB symbol
click to zoom
PCB Footprints
CBTD3861PW,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT355-1
click to zoom
3D Models
CBTD3861PW,118 - Nexperia - 3D model - Small Outline Packages - SOT355-1
click to zoom

CBTD3861PW,118 Details

  • Manufacturer Part Number:

    CBTD3861PW,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP2

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOT355-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    CBT/FST/QS/5C/B

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    1.5 mA

  • Prop. Delay@Nom-Sup:

    0.25 ns

  • Propagation Delay (tpd):

    0.25 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

CBTD3861PW,118 Frequently Asked Questions (FAQs)

  • Nexperia recommends a symmetrical PCB layout with a central ground plane, and to keep the input and output traces as short as possible to minimize parasitic inductance and capacitance. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure reliability in high-temperature applications, it's essential to follow Nexperia's recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink or a thermal interface material to reduce the thermal resistance between the device and the PCB.
  • Although the datasheet specifies a maximum input voltage of 5.5V, Nexperia recommends limiting the input voltage to 5V to ensure reliable operation and to prevent damage to the device.
  • Yes, the CBTD3861PW,118 can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and filtered to prevent high-frequency noise from affecting the regulator's performance.
  • To troubleshoot issues with CBTD3861PW,118, start by verifying the PCB layout and ensuring that the device is properly bypassed and filtered. Check for any signs of overheating, and verify that the input and output voltages are within the recommended operating range. If the issue persists, consider using a scope or a spectrum analyzer to analyze the device's behavior and identify the root cause of the problem.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CBTD3861PW,118 Overview

Use the download button to access the CBTD3861PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CBTD3, or try a keyword search, such as Bus Driver/Transceivers
