CBTL02GP023HOZ - NXP

Description: PCI Express Switch 1 Port 2-CH 14-Pin DHX2QFN EP T/R

Download CBTL02GP023HOZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

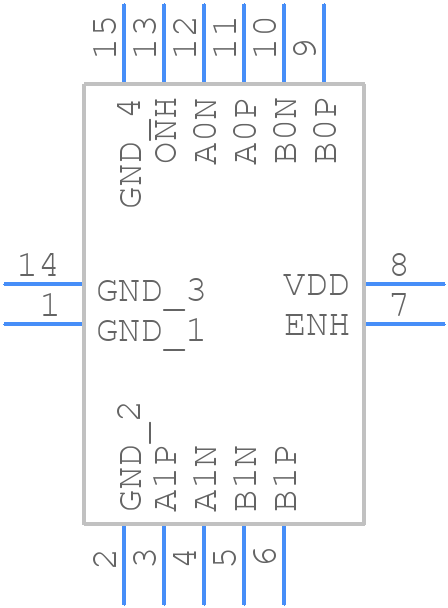

CBTL02GP023HOZ - NXP - PCB symbol
click to zoom
PCB Footprints
CBTL02GP023HOZ - NXP PCB footprint - Other - Other - CBTL02GP023HOZ-3
click to zoom
3D Models
CBTL02GP023HOZ - NXP - 3D model - Other - CBTL02GP023HOZ-3
click to zoom

CBTL02GP023HOZ Details

  • Manufacturer Part Number:

    CBTL02GP023HOZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DHX2QFN-14

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PQCC-N14

  • Length:

    2.1 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • On-state Resistance-Max (Ron):

    15 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HXQCCN

  • Package Equivalence Code:

    LCC14,.06X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.33 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.5 mm

CBTL02GP023HOZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
  • Use controlled impedance traces, add series termination resistors, and consider using a common-mode filter to reduce EMI. Also, ensure that the signal traces are well-separated and not routed near the power plane.
  • The CBTL02GP023HOZ is rated for operation from -40°C to 125°C. However, it's essential to consider the thermal design and heat dissipation in your system to ensure reliable operation within this range.
  • Yes, the CBTL02GP023HOZ is compatible with USB 3.2 Gen 2 applications, supporting data transfer rates up to 20 Gbps. However, ensure that your system design meets the USB 3.2 Gen 2 specification requirements.
  • Use a logic analyzer or oscilloscope to capture signal waveforms and verify signal integrity. Check the power supply voltage, signal termination, and PCB layout for any issues. Consult the NXP Semiconductors application notes and technical support resources for further guidance.
