CC2D35 - Amphenol

Description: Board Mount Humidity Sensors ChipCap2 Digital 3% 5v

Download CC2D35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

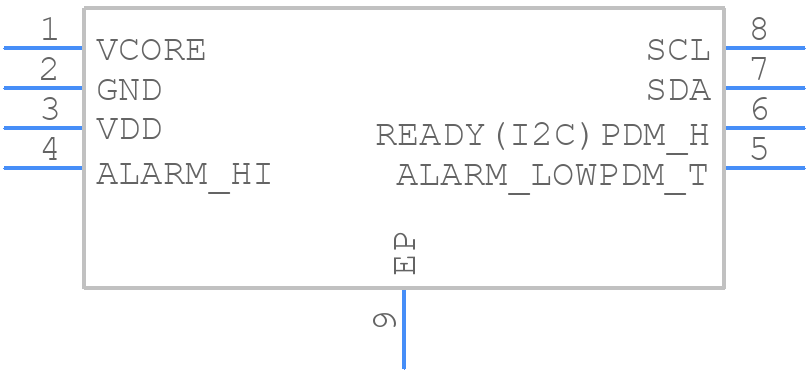

CC2D35 - Amphenol - PCB symbol
click to zoom
PCB Footprints
CC2D35 - Amphenol PCB footprint - Small Outline No-lead - Small Outline No-lead - CC2D35
click to zoom
3D Models
CC2D35 - Amphenol - 3D model - Small Outline No-lead - CC2D35
click to zoom

CC2D35 Details

  • Manufacturer Part Number:

    CC2D35

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-8

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

CC2D35 Frequently Asked Questions (FAQs)

  • The recommended torque for the CC2D35 connector is 10-15 in-lbs (1.1-1.7 Nm) for the screw locks and 5-10 in-lbs (0.56-1.1 Nm) for the jack screws.
  • Yes, the CC2D35 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-38999, which includes sinusoidal vibration testing at 20 Gs peak acceleration.
  • Yes, the CC2D35 is designed to be compatible with other MIL-DTL-38999 connectors. It has the same mating interface and meets the same performance requirements as other connectors in the series.
  • The operating temperature range of the CC2D35 is -65°C to +200°C (-85°F to +392°F), making it suitable for use in extreme temperature environments.
  • Yes, the CC2D35 is designed to withstand harsh environments. It has a salt spray resistance of 48 hours and meets the humidity requirements of MIL-DTL-38999.
