The recommended PCB layout involves keeping the input and output capacitors close to the module, using a solid ground plane, and ensuring good thermal conductivity. Thermal management involves providing adequate airflow, using a heat sink if necessary, and keeping the ambient temperature within the specified range.
To ensure EMC, follow proper PCB layout and grounding practices, use shielding if necessary, and ensure that the module is installed in a metal enclosure. Additionally, follow the manufacturer's guidelines for EMI filtering and radiation suppression.
Derating curves are available in the manufacturer's application notes or upon request. They provide guidance on reducing the output power or current to ensure reliable operation under various environmental conditions, such as high temperatures or low input voltages.
Yes, the CC3-0505SF-E can be used in redundant or parallel configurations, but it requires careful consideration of the system design, including synchronization, current sharing, and fault tolerance. Consult the manufacturer's application notes or contact their technical support for guidance.
The reliability and MTBF estimates are typically provided in the manufacturer's reliability report or datasheet. For the CC3-0505SF-E, the MTBF is estimated to be >1 million hours, depending on the operating conditions and environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC3-0505SF-E Overview

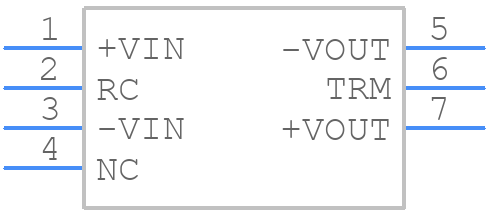

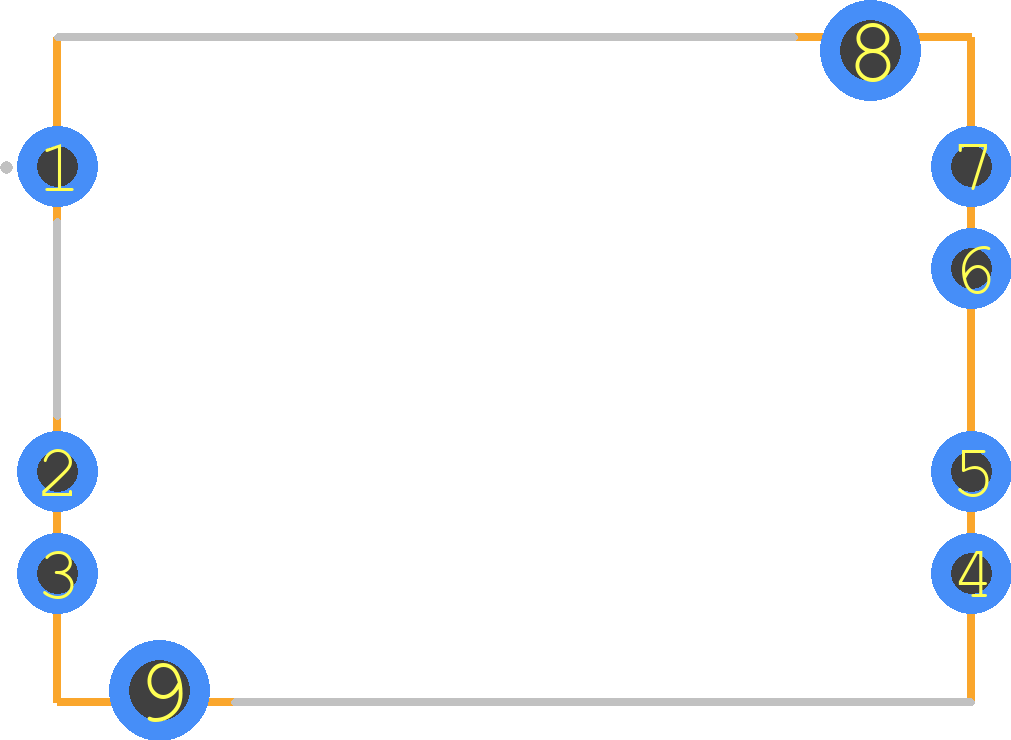

Use the download button to access the CC3-0505SF-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC3-0,
or try a keyword search, such as Power Supply Modules
