TDK-Lambda recommends a multi-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, ensure good airflow around the converter and consider adding a heat sink if operating in high ambient temperatures.
To ensure EMC, follow proper PCB layout and grounding practices, use a metal enclosure, and add EMI filters or shielding if necessary. TDK-Lambda also recommends following the guidelines in the EN 55022 and EN 55024 standards.
TDK-Lambda recommends derating the output power by 1% per 1,000 feet above sea level. For example, at 5,000 feet, the output power should be derated by 5%.
Yes, the CC3-2405SS-E can be used in a redundant or parallel configuration, but it's essential to follow TDK-Lambda's guidelines for synchronization and current sharing. Consult the application note AN-114 for more information.
According to TDK-Lambda, the MTBF for the CC3-2405SS-E is approximately 2,500,000 hours at 25°C, calculated using the MIL-HDBK-217F method.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC3-2405SS-E Overview

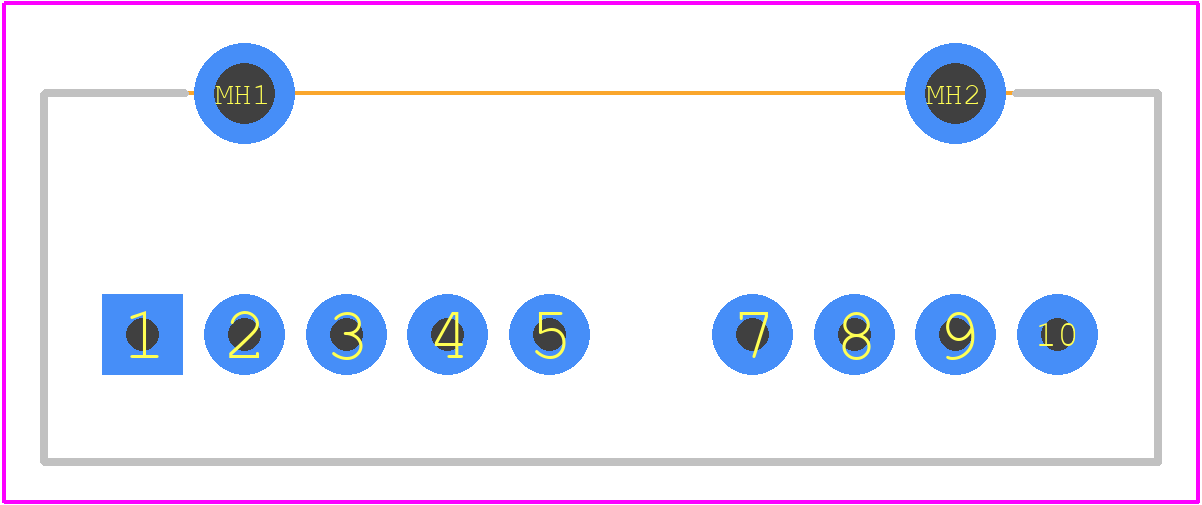

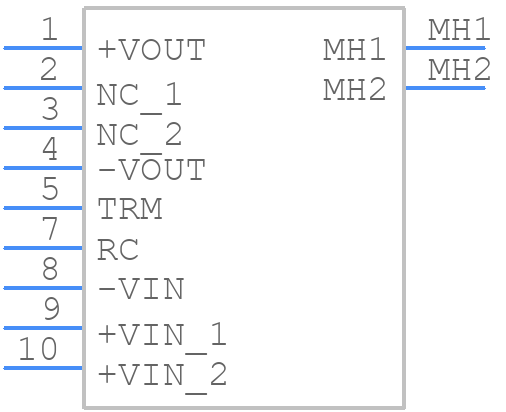

Use the download button to access the CC3-2405SS-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC3-2,
or try a keyword search, such as Power Supply Modules
