The recommended PCB layout involves keeping the input and output capacitors close to the module, using a solid ground plane, and ensuring good thermal conductivity. Thermal management involves providing adequate airflow, using a heat sink if necessary, and keeping the ambient temperature within the specified range.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding if necessary, and ensure that the module is installed in a metal enclosure. Additionally, follow the manufacturer's guidelines for EMI filtering and grounding.
Derating curves are available in the manufacturer's application notes or upon request. They provide information on how the module's performance is affected by temperature, input voltage, and output current. Engineers should consult these curves to ensure the module operates within safe operating limits.
Yes, the CC3-2412DF-E can be used in redundant or parallel configurations, but it requires careful design and implementation to ensure proper synchronization and load sharing. Consult the manufacturer's application notes or contact their technical support for guidance.
The CC3-2412DF-E is suitable for a wide range of applications, including industrial control systems, telecommunications, data storage, and medical devices. It's particularly useful in applications requiring high power density, low noise, and high reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC3-2412DF-E Overview

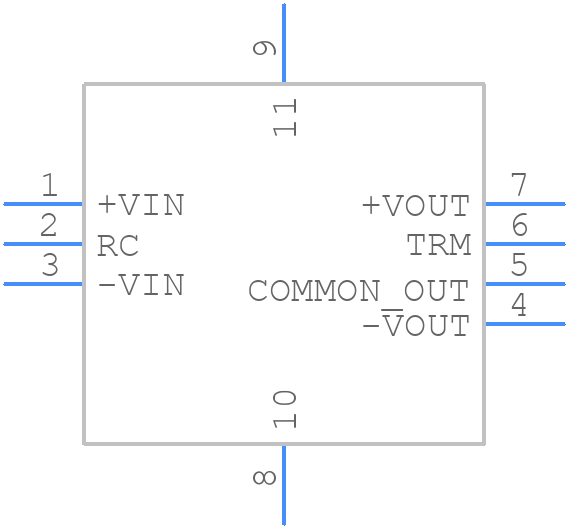

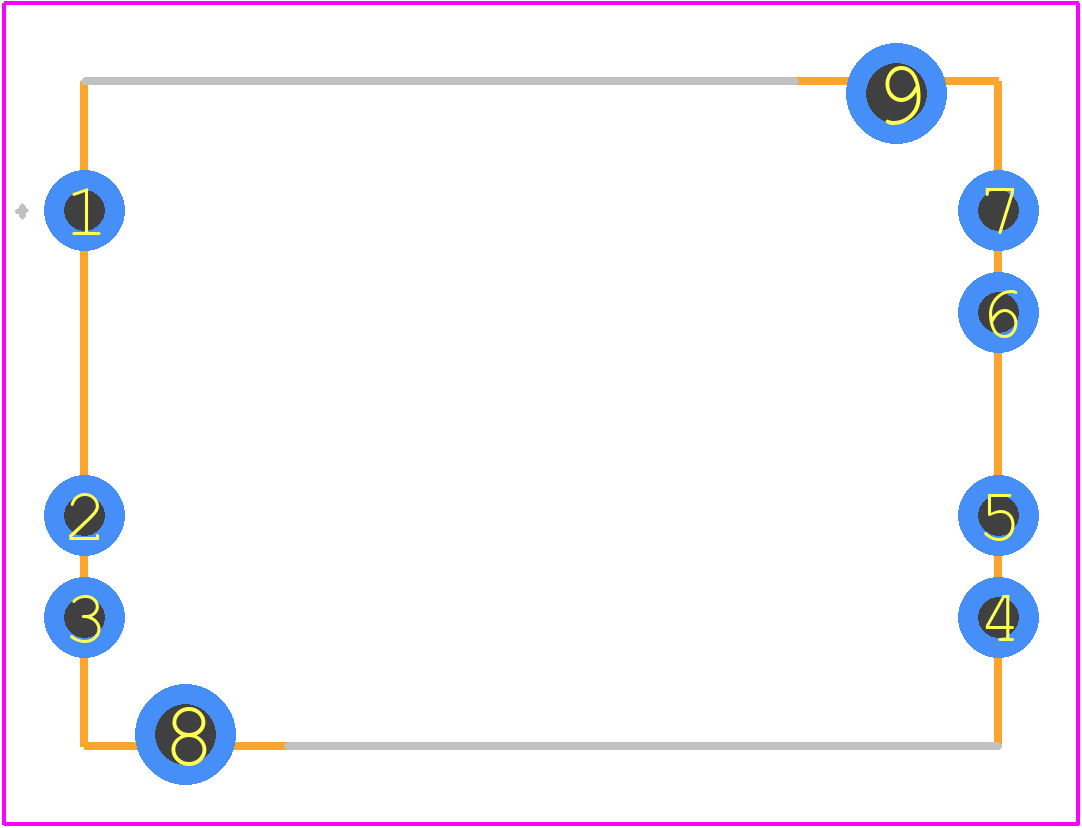

Use the download button to access the CC3-2412DF-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC3-2,
or try a keyword search, such as Power Supply Modules
