The recommended PCB layout involves keeping the input and output capacitors close to the DC-DC converter, using a solid ground plane, and minimizing the loop area of the input and output currents. For thermal management, ensure good airflow around the converter, and consider using a heat sink or thermal interface material if the ambient temperature exceeds 40°C.
To ensure EMC, follow the recommended PCB layout, use a metal enclosure, and add EMI filters or shielding if necessary. Also, ensure that the input and output cables are properly shielded and routed away from noise sources.
The derating curve is typically provided in the datasheet or can be obtained from the manufacturer. It shows the reduction in output power as a function of temperature. For the CC6-2412DF-E, the derating curve indicates a 1.5% reduction in output power per degree Celsius above 40°C.
Yes, the CC6-2412DF-E can be used in a redundant or parallel configuration, but it requires careful consideration of the system design, including synchronization, current sharing, and fault tolerance. Consult the manufacturer's application notes or contact their technical support for guidance.
The reliability and MTBF data for the CC6-2412DF-E can be obtained from the manufacturer or their authorized distributors. Typically, this information is provided in the form of a reliability report or a MIL-HDBK-217F prediction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CC6-2412DF-E Overview

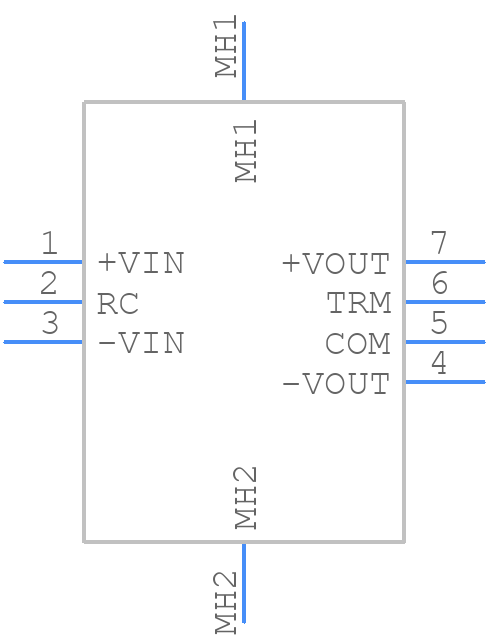

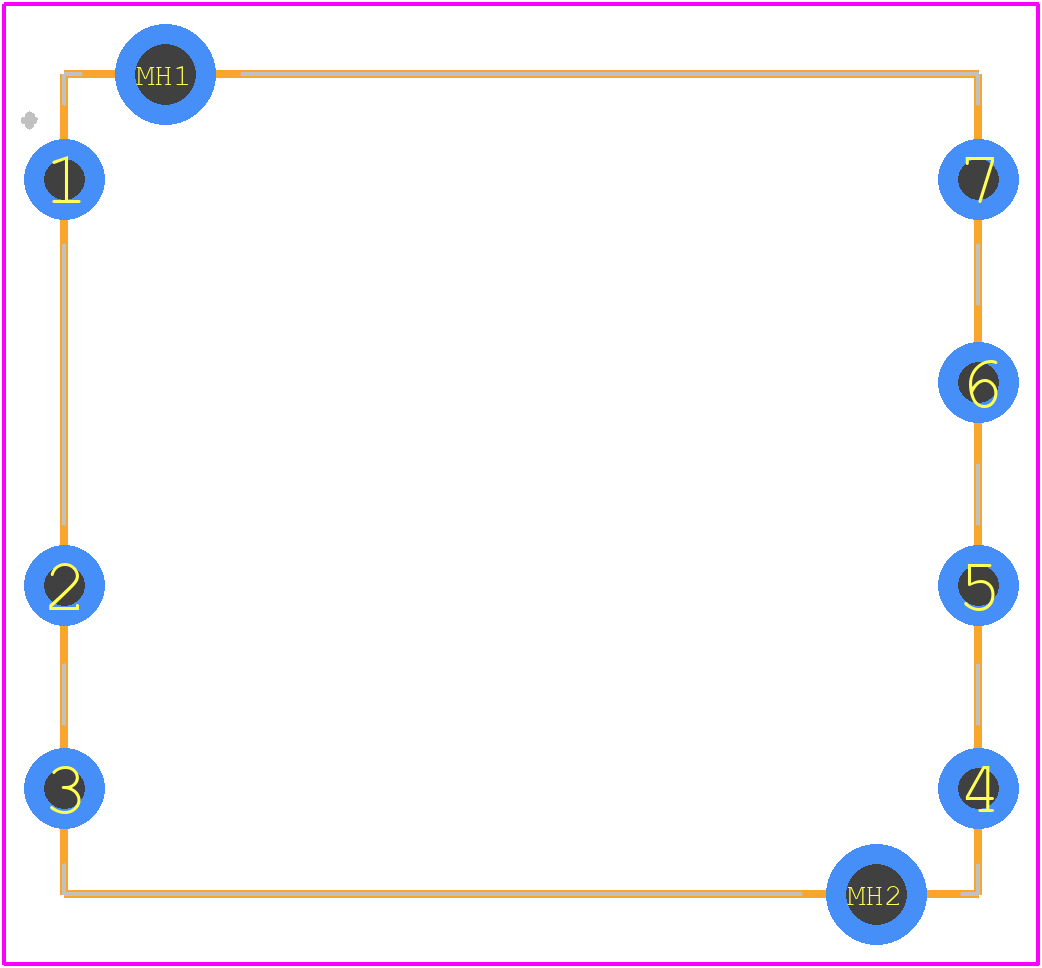

Use the download button to access the CC6-2412DF-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CC6-2,
or try a keyword search, such as Power Supply Modules
