The recommended land pattern for the CCN-2405SF can be found in the TDK Corporation's application note or footprint recommendation document, which provides detailed information on the recommended pad layout and dimensions for optimal performance and reliability.
To handle the CCN-2405SF's sensitivity to moisture and humidity, it is recommended to follow proper storage and handling procedures, such as storing the components in a dry and clean environment, using desiccant packaging, and avoiding exposure to high humidity and temperature conditions during assembly and testing.
The maximum allowable voltage derating for the CCN-2405SF depends on the specific application and operating conditions. As a general guideline, it is recommended to derate the voltage by 10-20% to ensure reliable operation and to prevent overheating or electrical stress.
While the CCN-2405SF is designed for high-frequency applications, its performance may degrade above 1 GHz. It is recommended to consult with TDK Corporation's application engineers or perform thorough simulations and testing to ensure the component's suitability for high-frequency applications above 1 GHz.
The recommended soldering profile for the CCN-2405SF can be found in the TDK Corporation's soldering guidelines document, which provides detailed information on the recommended soldering temperature, time, and flux type for optimal solder joint reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CCN-2405SF Overview

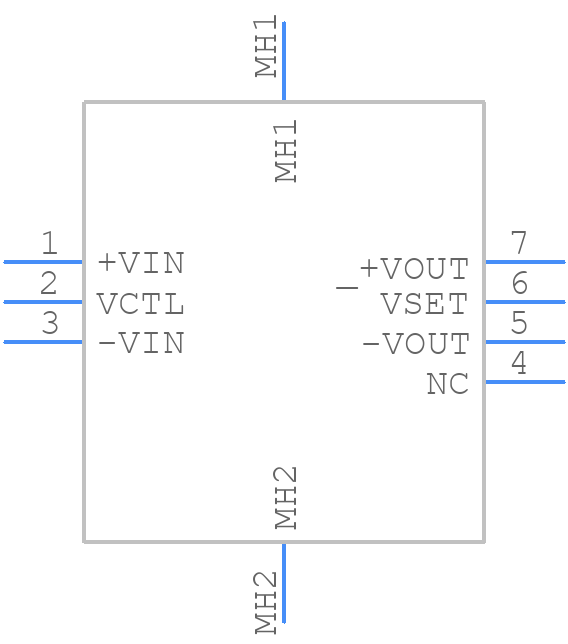

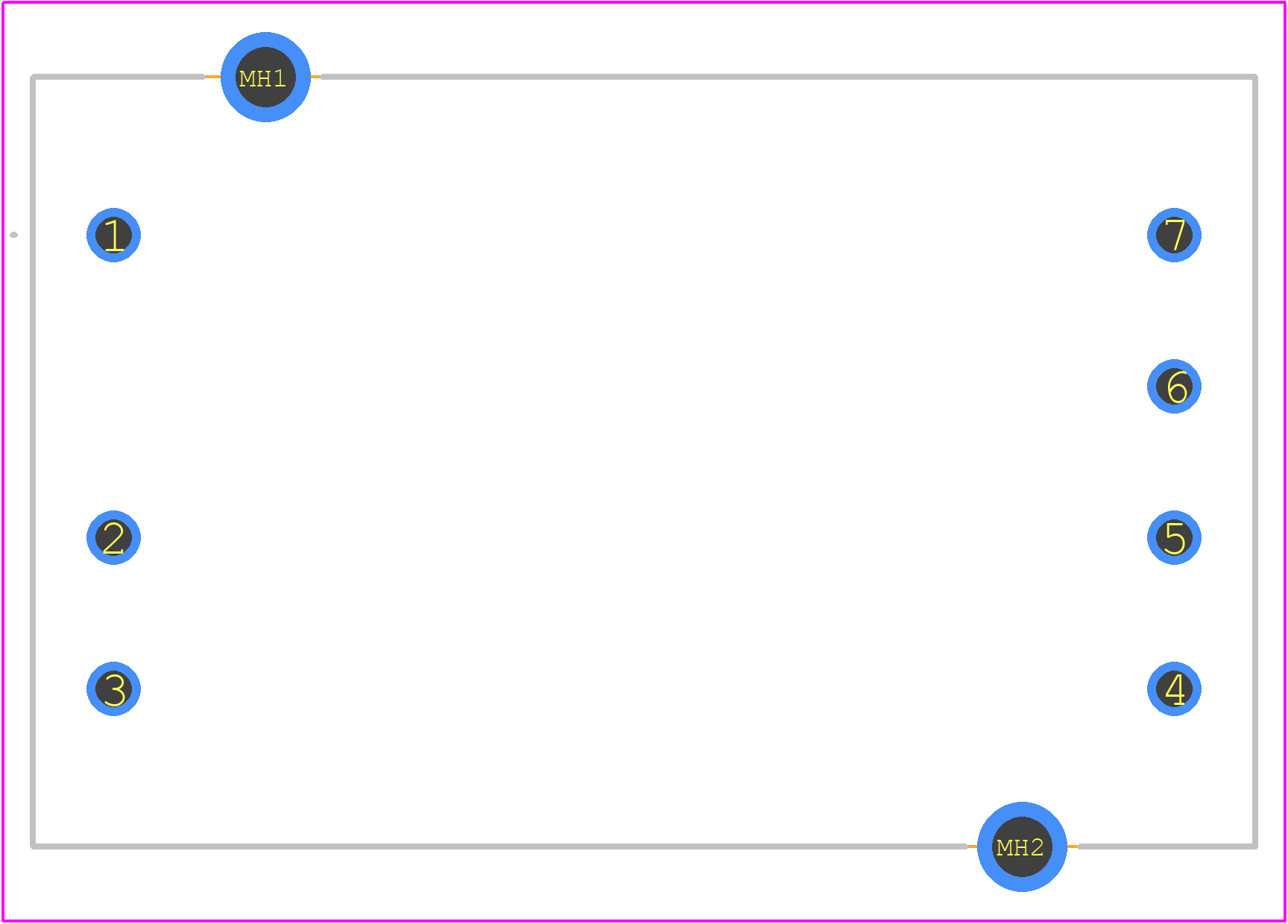

Use the download button to access the CCN-2405SF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CCN-2,
or try a keyword search, such as Power Supply Modules
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
