CCS811B-JOPR5K - ScioSense

Description: CCS811B-JOPR5K LGA10 LF T&R

Download CCS811B-JOPR5K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

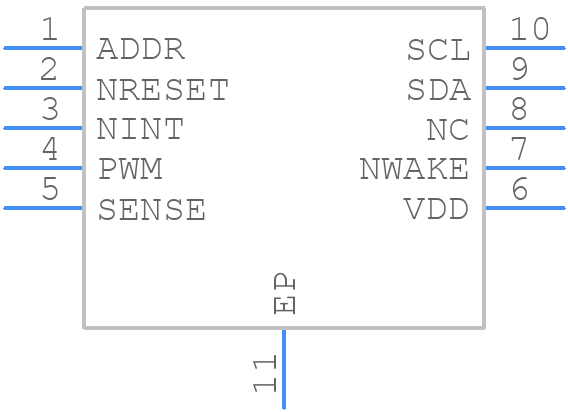

CCS811B-JOPR5K - ScioSense - PCB symbol
click to zoom
PCB Footprints
CCS811B-JOPR5K - ScioSense PCB footprint - Small Outline No-lead - Small Outline No-lead - LGA
click to zoom
3D Models
CCS811B-JOPR5K - ScioSense - 3D model - Small Outline No-lead - LGA
click to zoom

CCS811B-JOPR5K Details

  • Manufacturer Part Number:

    CCS811B-JOPR5K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-10

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ScioSense

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBGA-B10

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -5 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HLGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.6 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.7 mm

CCS811B-JOPR5K Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CCS811B-JOPR5K is -40°C to 85°C.
  • The CCS811B-JOPR5K requires periodic calibration to maintain accuracy. It is recommended to calibrate the sensor every 6-12 months, depending on the application and environmental conditions.
  • The response time of the CCS811B-JOPR5K is typically around 10-15 seconds for CO2 and 30-60 seconds for TVOC.
  • Yes, the CCS811B-JOPR5K is designed to operate in humid environments, but it's recommended to keep the relative humidity below 80% to ensure accurate readings.
  • The CCS811B-JOPR5K has a sleep mode to reduce power consumption. To wake up the sensor, send a reset command or toggle the nWAKE pin. The sensor will take around 10-15 seconds to wake up and start taking measurements.
