CD-PA1616D - Adafruit

Description: CD-PA1616D GNSS patch antenna module 3.3V , 34mA , 50Ω , 16 x 16 x 6.7 mm , -40°C to +85°C

Download CD-PA1616D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CD-PA1616D model

Email notifications will be applied after download.

Send part feedback

Symbol

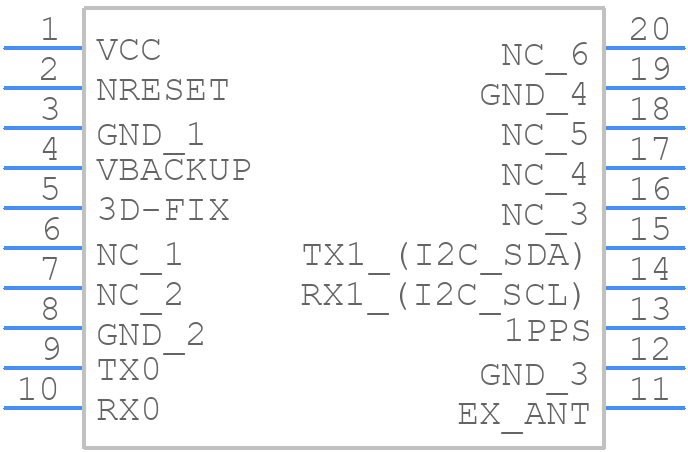

CD-PA1616D - Adafruit - PCB symbol

PCB Footprints

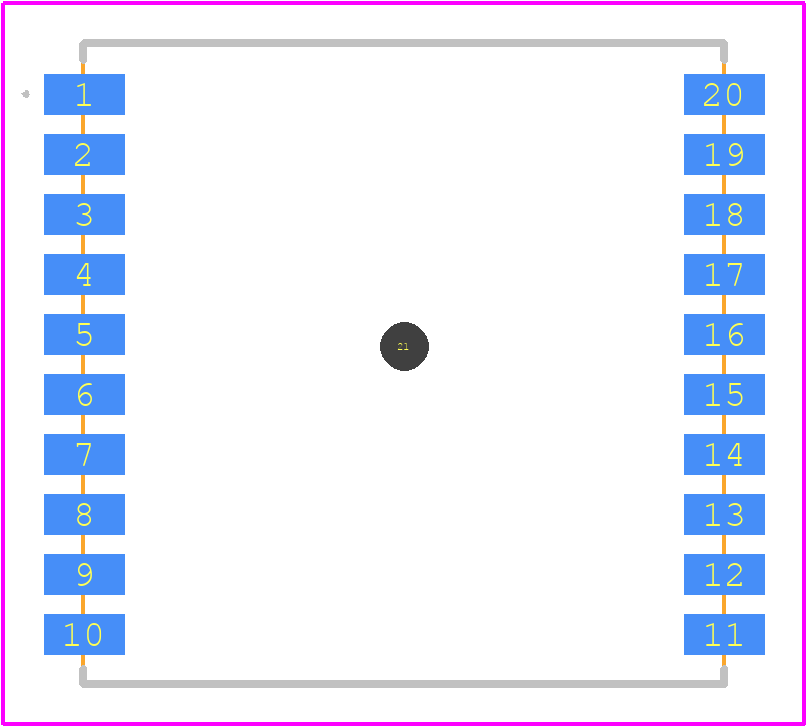

CD-PA1616D - Adafruit PCB footprint - Other - Other - CD-PA1616D-2

3D Models

CD-PA1616D - Adafruit - 3D model - Other - CD-PA1616D-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for CD-PA1616D
Part Number CD-PA1616D
Manufacturer Adafruit
Pin Count 20
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - CD-PA1616D-2
Released Date Feb 10, 2026
Last Modified Date Feb 10, 2026 12:40 PM UTC
