CD4021BCM - onsemi

Description: 8-Stage Static Shift Register

Download CD4021BCM Model

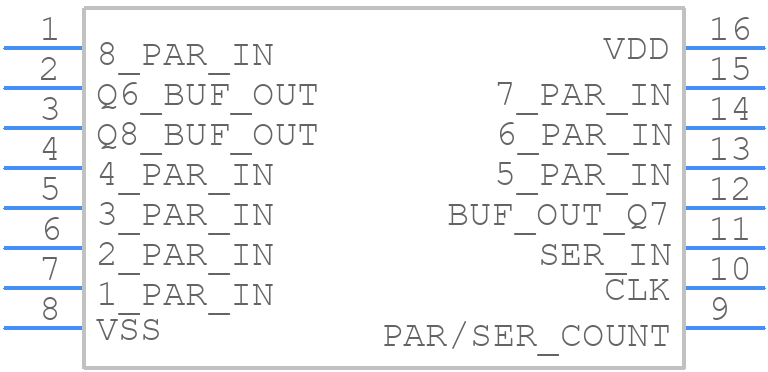

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CD4021BCM - onsemi PCB footprint - Other - Other - SOIC127P600X175-16N
click to zoom
3D Models
CD4021BCM - onsemi  - 3D model - Other - SOIC127P600X175-16N
click to zoom

CD4021BCM Details

  • Manufacturer Part Number:

    CD4021BCM

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MS-012, SOIC-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Count Direction:

    RIGHT

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    PARALLEL IN SERIAL OUT

  • Max Frequency@Nom-Sup:

    2500000 Hz

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Power Supply Current-Max (ICC):

    0.6 mA

  • Propagation Delay (tpd):

    350 ns

  • Seated Height-Max:

    1.753 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    2.5 MHz

CD4021BCM Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CD4021BCM is 3V to 18V, with a typical voltage of 5V or 15V.
  • Unused inputs on the CD4021BCM should be tied to a logic level (VCC or GND) to prevent floating inputs and ensure proper device operation.
  • The maximum clock frequency that the CD4021BCM can handle is 10 MHz, but this can vary depending on the specific application and operating conditions.
  • Yes, the CD4021BCM can be used in a 3.3V system, but the input and output voltage levels may need to be adjusted accordingly to ensure proper device operation.
  • To ensure proper power-up and initialization, the CD4021BCM should be powered up with a monotonic voltage ramp, and the clock input should be held low until the power supply has reached a stable level.
