CD4021BKMSR - Renesas Electronics

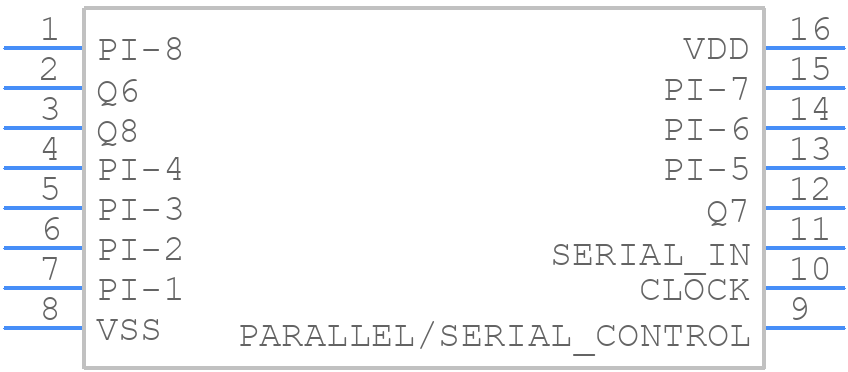

CD4021BKMSR Details

• Manufacturer Part Number:

  CD4021BKMSR

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  CFP

• Package Description:

  CERAMIC, DFP-16

• Pin Count:

  16

• Manufacturer Package Code:

  K16.A

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Count Direction:

  RIGHT

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-CDFP-F16

• JESD-609 Code:

  e4

• Length:

  11.18 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  PARALLEL IN SERIAL OUT

• Max Frequency@Nom-Sup:

  2200000 Hz

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  TRUE

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DFP

• Package Equivalence Code:

  FL16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Power Supply Current-Max (ICC):

  1 mA

• Propagation Delay (tpd):

  432 ns

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38535 Class V

• Seated Height-Max:

  2.92 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Gold (Au)

• Terminal Form:

  FLAT

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Total Dose:

  100k Rad(Si) V

• Trigger Type:

  POSITIVE EDGE

• Width:

  6.73 mm

• fmax-Min:

  2.22 MHz
