CD4069UBDMSR - Renesas Electronics

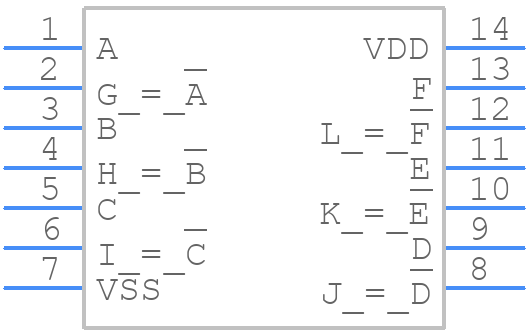

CD4069UBDMSR Details

• Manufacturer Part Number:

  CD4069UBDMSR

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SBDIP

• Package Description:

  BRAZE SEALED, DIP-14

• Pin Count:

  14

• Manufacturer Package Code:

  D14.3

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-CDIP-T14

• JESD-609 Code:

  e4

• Length:

  9.585 mm

• Logic IC Type:

  INVERTER

• Number of Functions:

  6

• Number of Inputs:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Propagation Delay (tpd):

  149 ns

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38535 Class V

• Seated Height-Max:

  5.33 mm

• Supply Voltage-Max (Vsup):

  20 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Gold (Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Dose:

  100k Rad(Si) V

• Width:

  7.62 mm
