CD4511BE - Harris

Description: Latch Decoder Driver

Download CD4511BE Model

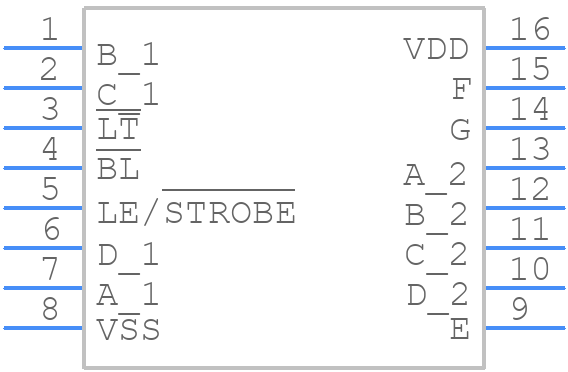

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CD4511BE - Harris PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - CD4511BE-AA
click to zoom
3D Models
CD4511BE - Harris  - 3D model - Dual-In-Line Packages - CD4511BE-AA
click to zoom

CD4511BE Details

  • Manufacturer Part Number:

    CD4511BE

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Harris Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    COMMON-CATHODE

  • Display Mode:

    SEGMENT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Number of Segments:

    7

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

CD4511BE Frequently Asked Questions (FAQs)

  • The CD4511BE can handle clock frequencies up to 10 MHz, but it's recommended to operate it at a frequency below 5 MHz for reliable operation.
  • To ensure proper reset, connect the RST pin to VCC through a 1kΩ resistor and a 10nF capacitor to ground. This will provide a clean reset signal during power-up.
  • The recommended operating voltage range for the CD4511BE is 5V ± 10%. Operating the device outside this range may affect its performance and reliability.
  • While the CD4511BE is specified for 5V operation, it can be used with a 3.3V supply voltage, but the output voltage levels may not be compatible with 3.3V logic. Additionally, the device's performance and reliability may be affected.
  • The CD4511BE can be interfaced with a microcontroller using a standard 8-bit bus interface. Connect the CD4511BE's data bus (D0-D7) to the microcontroller's data bus, and use the CD4511BE's control signals (CS, R/W, and E) to control data transfer.
