CD65ZU2GA681MYNKA - TDK

Description: Disc Type Capacitors with Lead (High Voltage Ceramic Capacitors), Capacitance=680pF, DxT: 7x7mm ,F: 10mm

Download CD65ZU2GA681MYNKA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CD65ZU2GA681MYNKA - TDK - PCB symbol
click to zoom
PCB Footprints

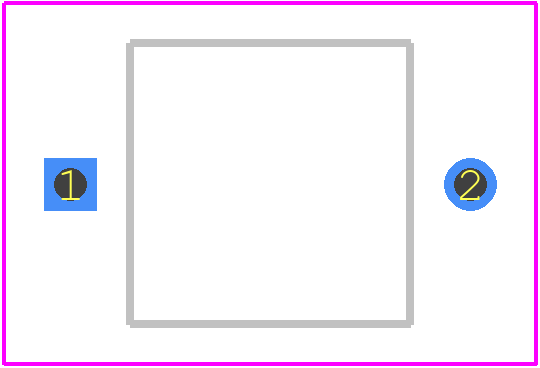

CD65ZU2GA681MYNKA - TDK PCB footprint - Other - Other - CD65ZU2GA681MYNKA
click to zoom
3D Models
CD65ZU2GA681MYNKA - TDK - 3D model - Other - CD65ZU2GA681MYNKA
click to zoom

CD65ZU2GA681MYNKA Details

  • Manufacturer Part Number:

    CD65ZU2GA681MYNKA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.23.00.60

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Capacitance:

    0.00068 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    7 mm

  • Length:

    7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    20%

  • Rated (AC) Voltage (URac):

    440 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    Z5U

  • Temperature Coefficient:

    -56/+22% ppm/°C

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

  • Width:

    7 mm

CD65ZU2GA681MYNKA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the CD65ZU2GA681MYNKA is designed for high-frequency applications, with a self-resonant frequency of 1.5 GHz or higher, making it suitable for use in high-speed circuits.
  • While the CD65ZU2GA681MYNKA is designed to operate in a wide range of temperatures, it's not recommended for use in humid environments. The capacitor's reliability may be affected by high humidity, so it's essential to follow the recommended storage and operating conditions.
  • The ESR of CD65ZU2GA681MYNKA is typically around 50 mΩ or less, making it suitable for high-frequency applications where low ESR is critical.
  • Yes, the CD65ZU2GA681MYNKA is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in a wide range of applications, including those in the European Union.
