CDDFN10-0506N - Bourns

Description: TVS/Steering Diode Array

Download CDDFN10-0506N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

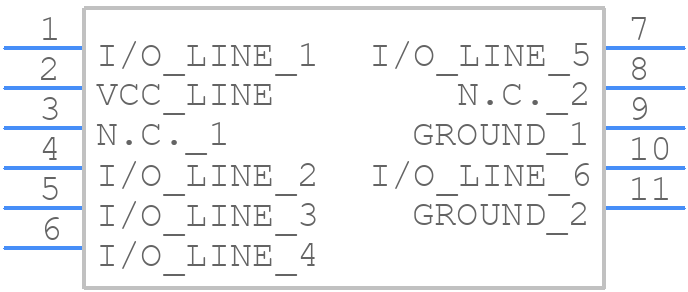

Symbol
CDDFN10-0506N - Bourns - PCB symbol
click to zoom
PCB Footprints
CDDFN10-0506N - Bourns PCB footprint - Other - Other - DFN-10
click to zoom
3D Models
CDDFN10-0506N - Bourns - 3D model - Other - DFN-10
click to zoom

CDDFN10-0506N Details

  • Manufacturer Part Number:

    CDDFN10-0506N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.11

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Min:

    6 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

CDDFN10-0506N Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are smooth and shiny.
  • The CDDFN10-0506N can operate safely between -40°C to 125°C, but it's recommended to derate the current rating above 85°C to ensure reliability.
  • Yes, the CDDFN10-0506N is designed to withstand vibrations up to 10G, but it's recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening to ensure reliability.
  • Store the CDDFN10-0506N in its original packaging or a similar ESD-protective package, and avoid exposing it to moisture, extreme temperatures, or physical stress during shipping.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDDFN10-0506N Overview

Use the download button to access the CDDFN10-0506N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDDFN, or try a keyword search, such as Transient Suppressors
