CDDFN10-0516P - Bourns

Description: ESD Suppressors / TVS Diodes TVS Diode Array 5 Volt

Download CDDFN10-0516P Model

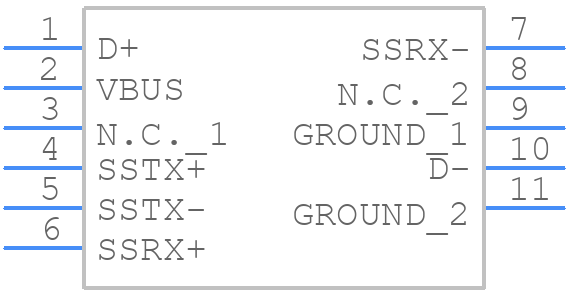

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDDFN10-0516P - Bourns PCB footprint - Other - Other - CDDFN10-0516P-3
click to zoom
3D Models
CDDFN10-0516P - Bourns  - 3D model - Other - CDDFN10-0516P-3
click to zoom

CDDFN10-0516P Details

  • Manufacturer Part Number:

    CDDFN10-0516P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.81

  • Additional Feature:

    LOW CAPACITANCE, ULTRA LOW CAPACITANCE

  • Breakdown Voltage-Min:

    6 V

  • Case Connection:

    ANODE

  • Clamping Voltage-Max:

    6.5 V

  • Configuration:

    COMMON ANODE, 3 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • Number of Elements:

    3

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    2.5 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

CDDFN10-0516P Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are smooth and shiny.
  • The maximum operating temperature range for the CDDFN10-0516P is -40°C to 125°C, as specified in the datasheet.
  • Yes, the CDDFN10-0516P is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and soldering techniques to ensure reliability.
  • Handle the component in an ESD-protected environment, use ESD-protective packaging, and ensure all personnel handling the component wear ESD-protective wrist straps or mats.
