CDDFN10-0524P - Bourns

Description: ESD Suppressors / TVS Diodes Steering Diode 4 Line Array

Download CDDFN10-0524P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

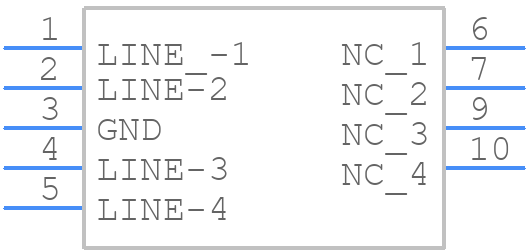

Symbol
CDDFN10-0524P - Bourns - PCB symbol
click to zoom
PCB Footprints
CDDFN10-0524P - Bourns PCB footprint - Other - Other - CDDFN10-0524P-3
click to zoom
3D Models
CDDFN10-0524P - Bourns - 3D model - Other - CDDFN10-0524P-3
click to zoom

CDDFN10-0524P Details

  • Manufacturer Part Number:

    CDDFN10-0524P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Min:

    6 V

  • Breakdown Voltage-Nom:

    6 V

  • Clamping Voltage-Max:

    12 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Non-rep Peak Rev Power Dis-Max:

    30 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

CDDFN10-0524P Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are clean and free of oxidation.
  • The CDDFN10-0524P is rated for operation from -40°C to 125°C, but derating may be necessary for high-temperature applications.
  • Yes, the CDDFN10-0524P is designed to withstand vibrations up to 10G, but additional mechanical support or potting may be necessary for extreme vibration environments.
  • Use a multimeter to check for proper voltage and current levels, and inspect the PCB for signs of damage or overheating. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDDFN10-0524P Overview

Use the download button to access the CDDFN10-0524P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDDFN, or try a keyword search, such as Transient Suppressors
