A good PCB layout for the CDDFN10-3304NA would involve keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device. Avoid applying excessive heat or pressure, which can damage the device.
The CDDFN10-3304NA has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
Yes, the CDDFN10-3304NA is designed to withstand high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to further reduce the risk of device failure.
To troubleshoot issues with the CDDFN10-3304NA, start by checking the input and output voltages, as well as the current draw. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for any unusual voltage or current waveforms. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDDFN10-3304NA Overview

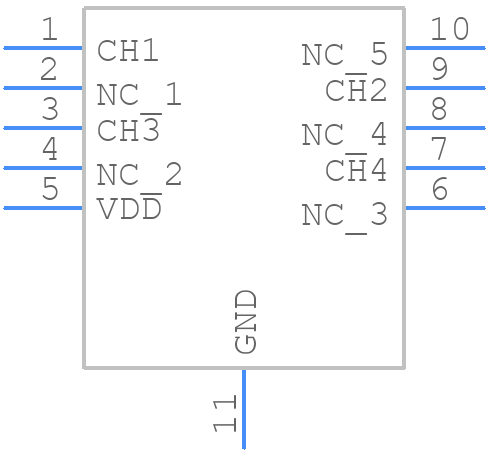

Use the download button to access the CDDFN10-3304NA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDDFN,
or try a keyword search, such as Transient Suppressors
