CDDFN10-3324P - Bourns

Description: BOURNS - CDDFN10-3324P - DIODE, ESD PROTECTION, 3.3V, 0.45PF

Download CDDFN10-3324P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

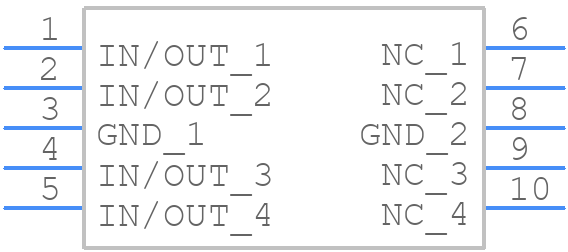

Symbol
CDDFN10-3324P - Bourns - PCB symbol
click to zoom
PCB Footprints
CDDFN10-3324P - Bourns PCB footprint - Other - Other - CDDFN10-3324P
click to zoom
3D Models
CDDFN10-3324P - Bourns - 3D model - Other - CDDFN10-3324P
click to zoom

CDDFN10-3324P Details

  • Manufacturer Part Number:

    CDDFN10-3324P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Min:

    4.5 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Non-rep Peak Rev Power Dis-Max:

    30 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

CDDFN10-3324P Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with a PCB design expert to ensure optimal performance.
  • The CDDFN10-3324P is designed to provide high-frequency noise attenuation and EMI filtering. Its ferrite core and winding design help to suppress high-frequency noise and electromagnetic interference.
  • The CDDFN10-3324P is rated for operation from -40°C to +125°C. However, it's essential to derate the component's performance at higher temperatures to ensure reliable operation.
  • Yes, the CDDFN10-3324P is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its robust design and rigorous testing.
  • The CDDFN10-3324P offers a unique combination of high impedance, low insertion loss, and compact size, making it an attractive option for designers. However, it's essential to evaluate the specific requirements of your application and compare the CDDFN10-3324P to other options to ensure the best fit.
