CDDFN6-3312P - Bourns

Description: ESD Suppressors / TVS Diodes TVS DIODE ARRAY 3.3V DFN6

Download CDDFN6-3312P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

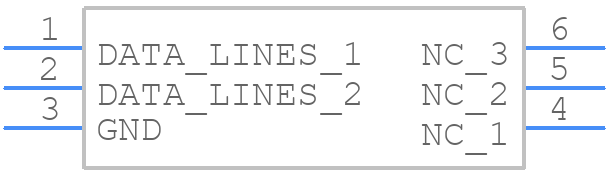

Symbol
CDDFN6-3312P - Bourns - PCB symbol
click to zoom
PCB Footprints
CDDFN6-3312P - Bourns PCB footprint - Other - Other - CDDFN6-3312P-2
click to zoom
3D Models
CDDFN6-3312P - Bourns - 3D model - Other - CDDFN6-3312P-2
click to zoom

CDDFN6-3312P Details

  • Manufacturer Part Number:

    CDDFN6-3312P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.44

  • Additional Feature:

    ULTRA LOW CAPACITANCE

  • Breakdown Voltage-Min:

    4.5 V

  • Clamping Voltage-Max:

    13 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    R-PDSO-N6

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Reverse Current-Max:

    0.5 µA

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

CDDFN6-3312P Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane and a minimum of vias to minimize inductance and ensure optimal performance. A 4-layer PCB with a dedicated ground plane is recommended.
  • Bourns recommends using a soldering iron with a temperature of 250°C to 260°C and a solder with a melting point of 180°C to 190°C. The component should be soldered within 3 seconds to 5 seconds to prevent overheating.
  • The CDDFN6-3312P is rated for operation from -40°C to 125°C, but derating is required above 85°C. Consult the datasheet for specific derating curves.
  • Yes, the CDDFN6-3312P is designed to withstand high-vibration environments. However, it's recommended to follow Bourns' guidelines for vibration testing and to ensure proper PCB mounting and soldering to prevent mechanical stress.
  • Yes, the CDDFN6-3312P is compatible with lead-free soldering processes. However, it's recommended to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDDFN6-3312P Overview

Use the download button to access the CDDFN6-3312P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDDFN, or try a keyword search, such as Transient Suppressors
