CDK3404ATQ48 - EXAR

Description: CDK3404ATQ48, Video DAC Triple, 8 bit- 180Msps ±3%FS 12ns Parallel, 48-Pin TQFP

Download CDK3404ATQ48 Model

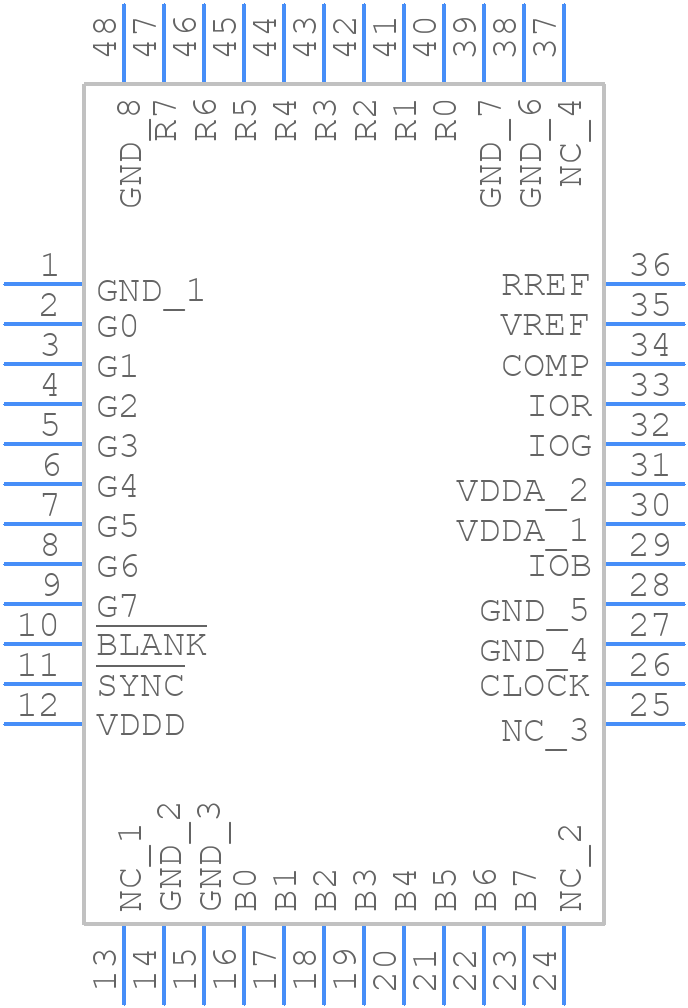

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDK3404ATQ48 - EXAR PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP-48
click to zoom
3D Models
CDK3404ATQ48 - EXAR  - 3D model - Quad Flat Packages - TQFP-48
click to zoom

CDK3404ATQ48 Details

  • Manufacturer Part Number:

    CDK3404ATQ48

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TQFP-48

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Exar Corporation

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.195%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.0025 µs

  • Supply Current-Max:

    95 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

CDK3404ATQ48 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CDK3404ATQ48 is 3.3V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to follow a power-up sequence of VCC, then VDD, and a power-down sequence of VDD, then VCC.
  • The CDK3404ATQ48 supports clock frequencies up to 40 MHz.
  • The CDK3404ATQ48 has a power-down mode that can be controlled by the PD pin. To enter power-down mode, assert the PD pin low. To exit power-down mode, de-assert the PD pin high.
  • The BYPASS pin is used to bypass the internal voltage regulator. When the BYPASS pin is tied high, the internal voltage regulator is disabled, and an external voltage regulator can be used.
