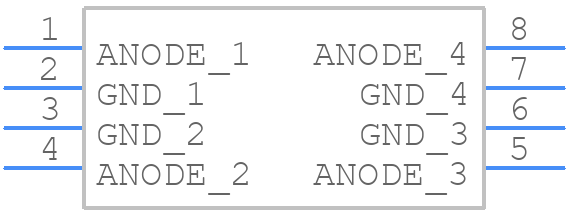

CDNBS08-T58CC - Bourns

CDNBS08-T58CC Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and land pattern for optimal performance?
  Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper heat dissipation, reduce thermal resistance, and prevent electrical noise.
• How do I select the correct current rating for my application?
  To select the correct current rating, consider the maximum current required by your load, as well as any potential inrush currents. Also, ensure the CDNBS08-T58CC's current rating is derated according to the ambient temperature and airflow in your system.
• What is the maximum operating temperature range for this component?
  The CDNBS08-T58CC is rated for operation from -40°C to 150°C. However, it's essential to consider the derating curves provided in the datasheet to ensure the component operates within its specified limits.
• How do I ensure the CDNBS08-T58CC is properly soldered and assembled?
  Follow the recommended soldering profile and assembly guidelines provided by Bourns. Ensure the component is handled and stored properly to prevent damage, and use a soldering iron with a temperature range of 250°C to 260°C.
• What are the ESD protection and handling precautions for this component?
  The CDNBS08-T58CC is an ESD-sensitive device. Handle the component in an ESD-protected environment, and use wrist straps, mats, or other ESD protection devices to prevent damage. Avoid touching the component's pins or exposed pads.
