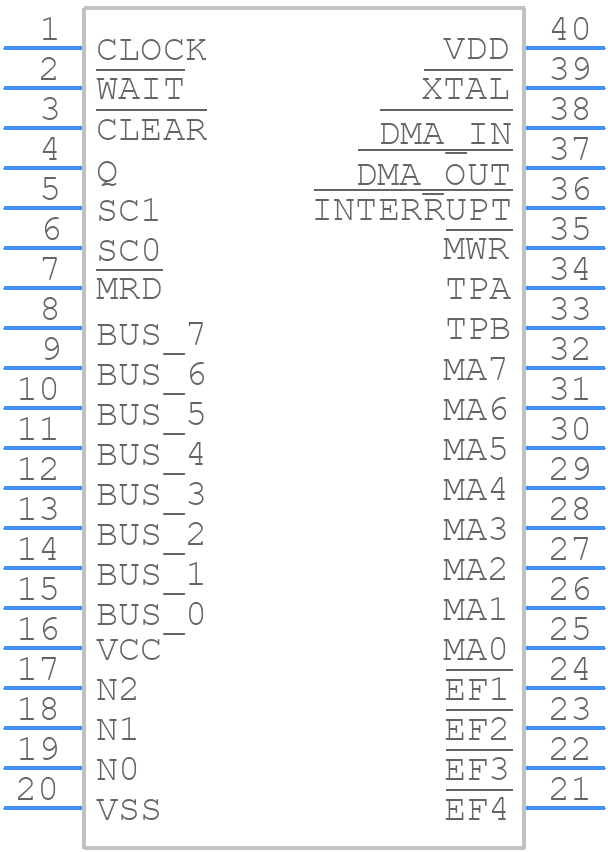

Symbol

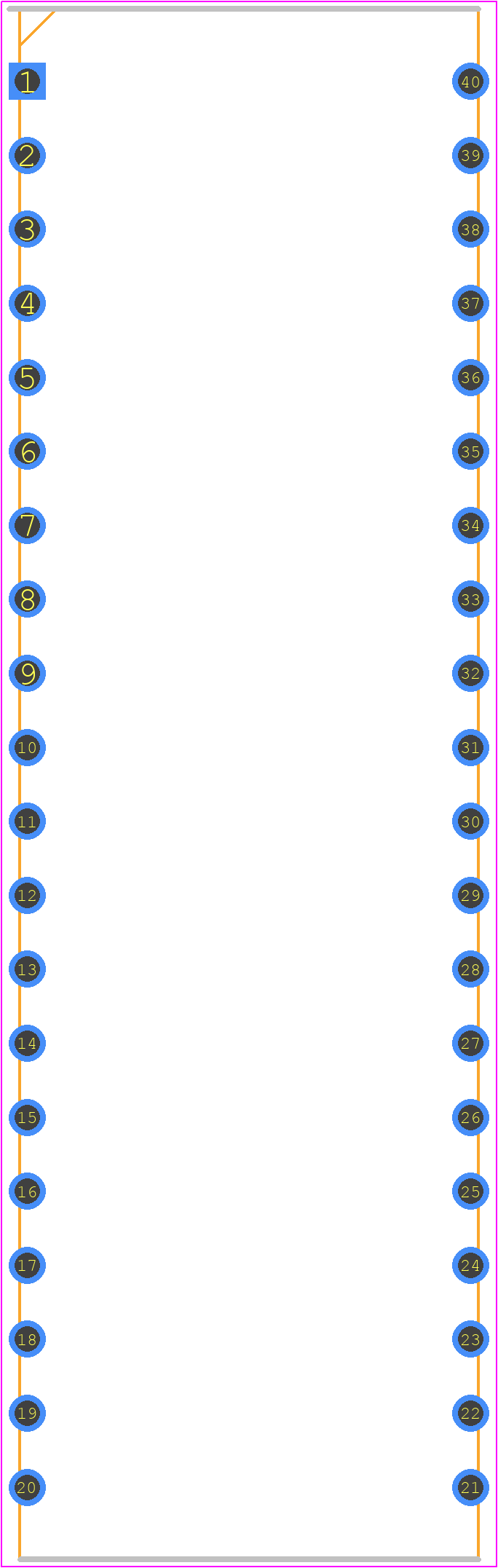

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CDP1802ACD
- Part Number CDP1802ACD
- Manufacturer Renesas Electronics
- Pin Count 40
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - 40 Ld CERDIP
- Released Date Mar 18, 2021
- Last Modified Date Oct 24, 2023 7:30 PM UTC
- Pinout / Pin List Click Here (Member Only)
CDP1802ACD Details
-
Manufacturer Part Number:
CDP1802ACD
-
Manufacturer:
Renesas Electronics Corporation
Trust Checks
Community Provided
System Verified
Community Approved
CDP1802ACD Overview
Use the download button to access the CDP1802ACD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CDP18,
or try a keyword search, such as Microprocessors
