CDP68HC68T1MZ96 - Renesas Electronics

Description: The CDP68HC68T1 Real-Time Clock provides a time/calendar function, a 32 byte static RAM, and a 3 wire Serial Peripheral Interface (SPI Bus). The primary function of the clock is to divide down a frequency input that can be supplied by the on-board oscillator in conjunction with an external crystal or by an external clock source. The internal oscillator can operate with a 32kHz, 1MHz, 2MHz, or 4MHz crystal. An external clock source with a 32kHz, 1MHz, 2MHz, 4MHz, 50Hz or 60Hz frequency can be used to drive t

Download CDP68HC68T1MZ96 Model

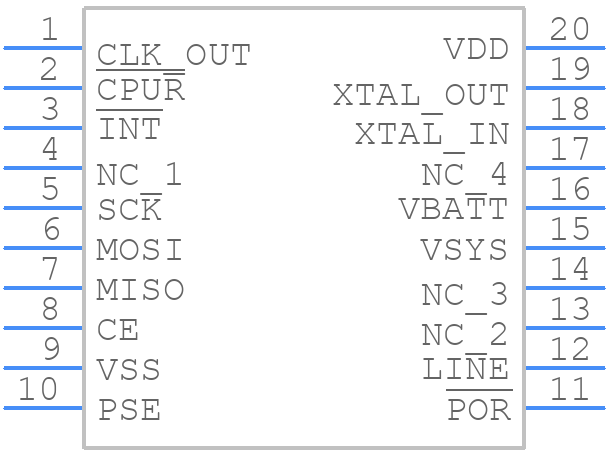

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDP68HC68T1MZ96 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M20.3 (JEDEC MS-013-AC ISSUE C) 20 LEAD WIDE BODY SMALL OUTLINE PLASTIC PACKAGE
click to zoom
3D Models
CDP68HC68T1MZ96 - Renesas Electronics  - 3D model - Small Outline Packages - M20.3 (JEDEC MS-013-AC ISSUE C) 20 LEAD WIDE BODY SMALL OUTLINE PLASTIC PACKAGE
click to zoom

CDP68HC68T1MZ96 Details

  • Manufacturer Part Number:

    CDP68HC68T1MZ96

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICW

  • Pin Count:

    20

  • Manufacturer Package Code:

    M20.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    4.2 MHz

  • Information Access Method:

    SERIAL(SPI), SERIAL, 3-WIRE

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

CDP68HC68T1MZ96 Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the CDP68HC68T1MZ96 is 16 MHz, but it can operate with a frequency range of 4 MHz to 24 MHz.
  • The clock source can be configured using the Clock Mode Register (CMR) and the Clock Source Register (CSR). The CMR sets the clock mode, and the CSR selects the clock source, which can be either the internal oscillator, external oscillator, or PLL.
  • The maximum operating temperature range for the CDP68HC68T1MZ96 is -40°C to +85°C.
  • The watchdog timer can be implemented using the Watchdog Timer Control Register (WTCSR) and the Watchdog Timer Counter Register (WTCTR). The WTCSR enables and configures the watchdog timer, and the WTCTR sets the timeout period.
  • The maximum current consumption of the CDP68HC68T1MZ96 is 15 mA at 5V and 10 MHz, but this can vary depending on the operating frequency, voltage, and other factors.
