The recommended PCB layout and footprint can be found in the Sumida Corporation's application note or design guide for the CDPQ2010NP-100M-160. It typically includes guidelines for pad size, spacing, and thermal vias to ensure proper heat dissipation and signal integrity.
To minimize magnetic field interference, keep the inductor at least 5mm away from sensitive components, such as oscillators, antennas, or magnetically sensitive devices. You can also use shielding materials or orient the inductor to reduce the magnetic field's impact.
The maximum allowable voltage derating for the CDPQ2010NP-100M-160 is typically 80% of the rated voltage. However, it's recommended to consult with Sumida Corporation's application engineers or refer to their documentation for specific guidance on voltage derating.
The CDPQ2010NP-100M-160 is rated for operation up to 125°C. However, the inductor's performance and lifespan may degrade at higher temperatures. Consult with Sumida Corporation's documentation or application engineers to determine the inductor's suitability for your specific high-temperature application.
The CDPQ2010NP-100M-160 is designed to meet EMI and radiation standards. However, to ensure compliance, follow proper PCB layout and design practices, such as using ground planes, shielding, and filtering. Consult with Sumida Corporation's documentation or application engineers for specific guidance on EMI and radiation mitigation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDPQ2010NP-100M-160 Overview

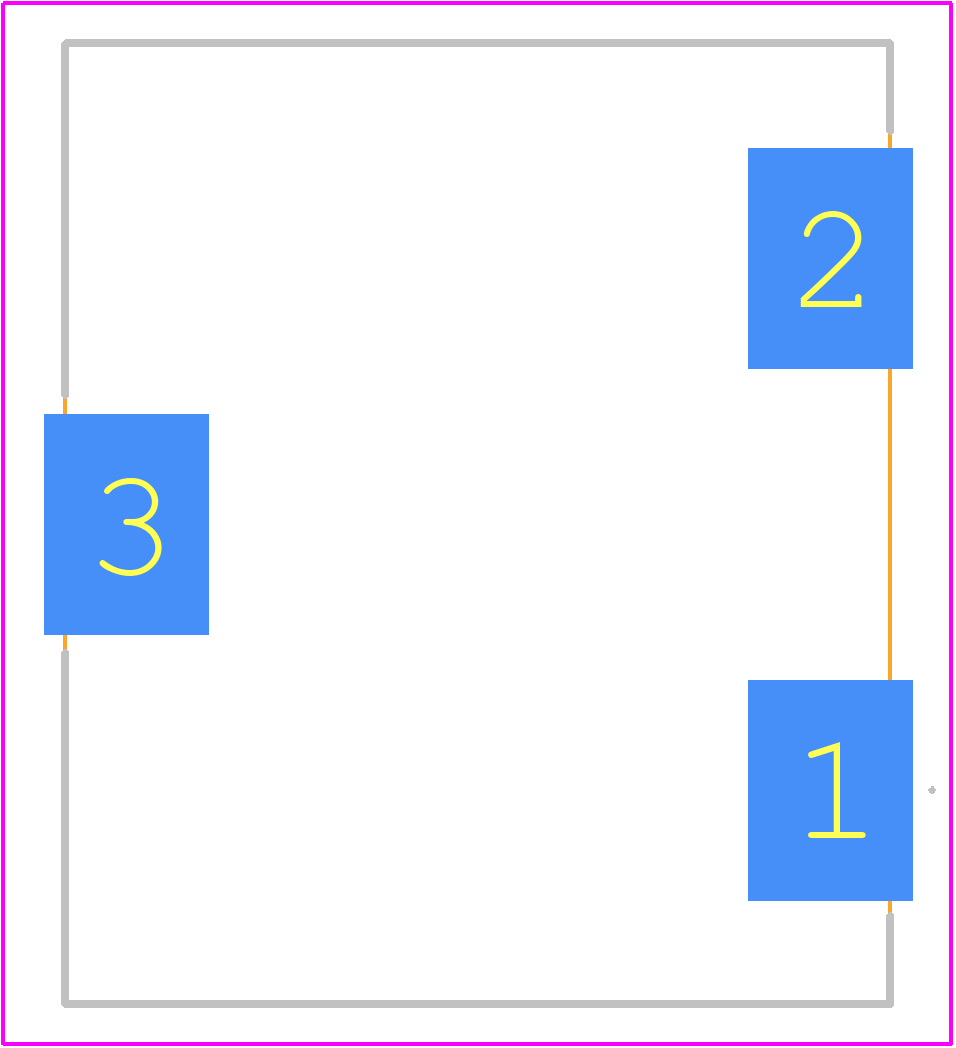

Use the download button to access the CDPQ2010NP-100M-160 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDPQ2,
or try a keyword search, such as Fixed Inductors
