CDRH127L125NP-7R5NC - Sumida

Description: FIXED IND 7.5UH 7A 16.3MOHM SMD

Download CDRH127L125NP-7R5NC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

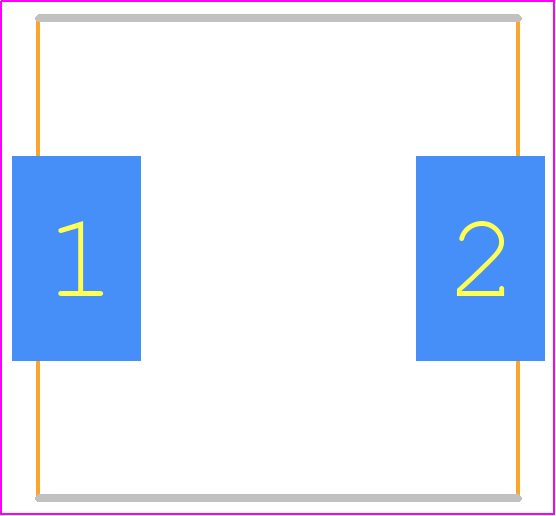

CDRH127L125NP-7R5NC - Sumida PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - 12X12_2021
