Bourns provides a recommended PCB land pattern in their application note AN164, which can be found on their website. The recommended land pattern ensures proper soldering and thermal management.
To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point below 260°C and avoid applying excessive force or vibration during the soldering process.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and reliability may degrade above 125°C. For optimal performance, it's recommended to operate the device within the -40°C to 125°C range.
While the CDSOT23-T08C-Q is designed to be robust, it's not specifically designed for high-vibration or high-shock applications. If your application requires such conditions, consider using a more ruggedized component or consulting with Bourns' application engineers for guidance.
To prevent electrostatic discharge (ESD) damage, follow proper ESD handling procedures, such as using an ESD wrist strap, mat, or workstation. Ensure that all equipment and tools are properly grounded, and avoid touching the device's pins or leads.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDSOT23-T08C-Q Overview

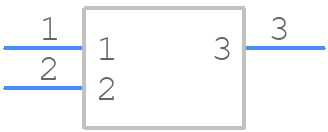

Use the download button to access the CDSOT23-T08C-Q schematic symbol, PCB footprint, and 3D model.
