CDSOT23-T15C-Q - Bourns

Description: ESD Suppressors / TVS Diodes TVS Diode 15V 500W BIDIR SOT23

Download CDSOT23-T15C-Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

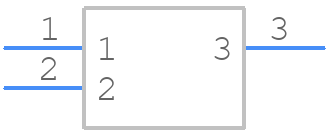

CDSOT23-T15C-Q - Bourns - PCB symbol
click to zoom
PCB Footprints
CDSOT23-T15C-Q - Bourns PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-323_2021
click to zoom
3D Models
CDSOT23-T15C-Q - Bourns - 3D model - SOT23 (3-Pin) - SOT-323_2021
click to zoom

CDSOT23-T15C-Q Details

  • Manufacturer Part Number:

    CDSOT23-T15C-Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2019-02-17

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.06

  • Breakdown Voltage-Min:

    16.7 V

  • Clamping Voltage-Max:

    25 V

  • Configuration:

    COMMON ANODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    500 W

  • Number of Elements:

    2

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    15 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    15 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

CDSOT23-T15C-Q Frequently Asked Questions (FAQs)

  • The recommended land pattern for the CDSOT23-T15C-Q can be found in the Bourns application note AN204, which provides guidelines for surface mount assembly and layout considerations.
  • To prevent damage, it is recommended to handle the CDSOT23-T15C-Q by the body of the device, avoiding touching the leads or the ceramic substrate. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
  • The maximum storage temperature for the CDSOT23-T15C-Q is 40°C (104°F) with a relative humidity of 90% or less, as specified in the Bourns datasheet.
  • The CDSOT23-T15C-Q is designed to withstand moderate vibration levels, but it is not recommended for use in high-vibration environments. If vibration is a concern, consider using a device with a more robust mechanical design or additional mechanical support.
  • The CDSOT23-T15C-Q can be soldered using a standard surface mount technology (SMT) process with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. Use a solder with a melting point of 220°C (428°F) or higher, and follow the recommended soldering profile in the Bourns application note AN204.
