CE1759-ALB - COILCRAFT

Description: Common Mode Chokes / Filters For PowerLine 0.81mH 6A DCR=14mOhms

Download CE1759-ALB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CE1759-ALB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

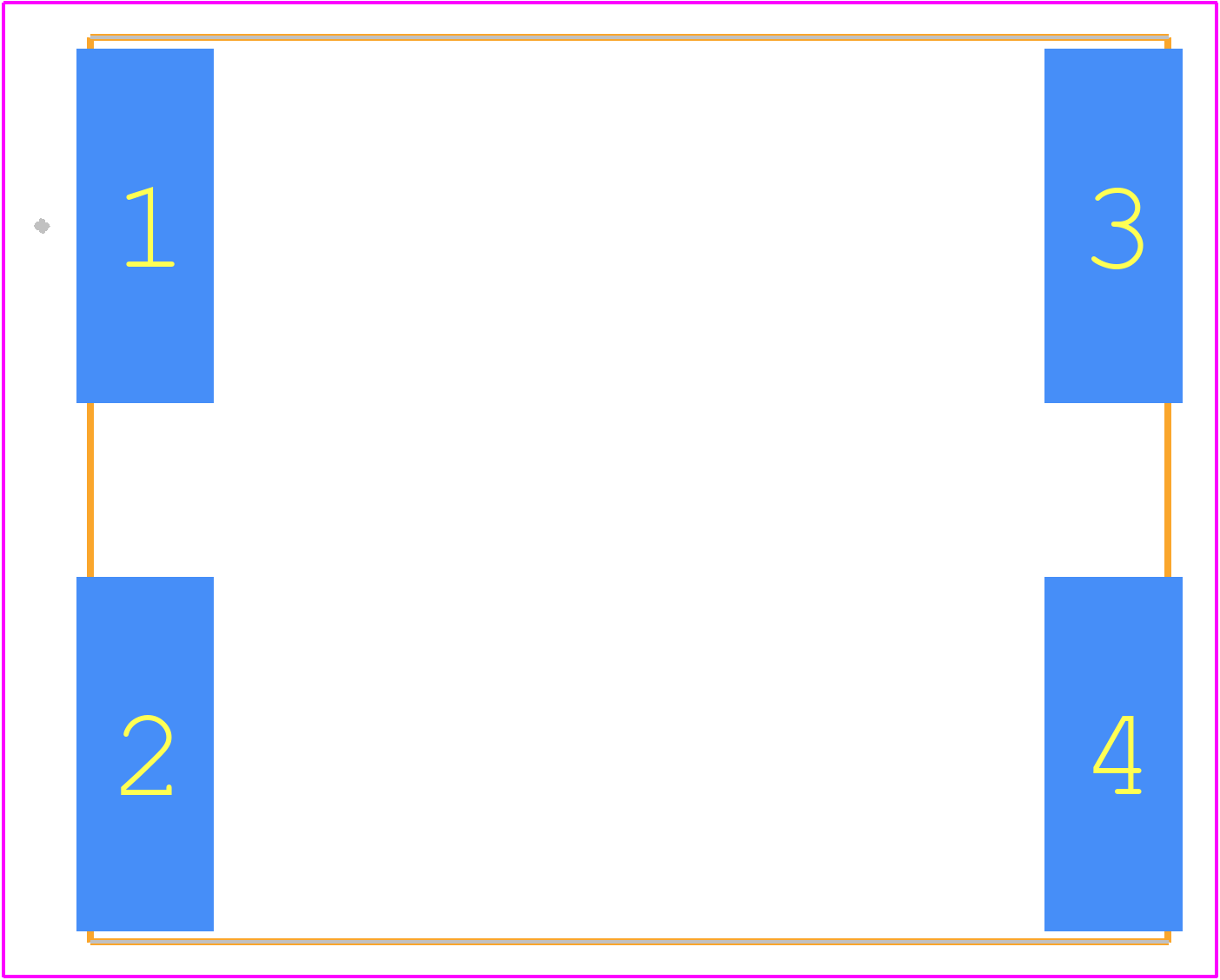

CE1759-ALB - COILCRAFT PCB footprint - Other - Other - CE1759-ALB-2
click to zoom
3D Models
CE1759-ALB - COILCRAFT - 3D model - Other - CE1759-ALB-2
click to zoom

CE1759-ALB Details

  • Manufacturer Part Number:

    CE1759-ALB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • DC Resistance-Max:

    0.014 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    13 mm

  • Inductance:

    810 µH

  • Length:

    31 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    4820 OHM Ω

  • Packing Method:

    TAPE

  • Width:

    26 mm

CE1759-ALB Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended land pattern for the CE1759-ALB in their datasheet, which includes a suggested pad layout and dimensions for optimal assembly and performance.
  • The CE1759-ALB has a rated operating temperature range of -40°C to +125°C. While it can tolerate high temperatures, it's essential to consider the derating curves and thermal management in your design to ensure reliable operation.
  • The CE1759-ALB has a shielded construction, which helps reduce electromagnetic interference (EMI). To maintain the shielding effectiveness, ensure that the inductor is placed on a solid ground plane and avoid routing sensitive signals near the inductor.
  • The SRF of the CE1759-ALB is not explicitly stated in the datasheet. However, Coilcraft provides an impedance vs. frequency graph, which can be used to estimate the SRF. Alternatively, you can contact Coilcraft's technical support for more information.
  • The CE1759-ALB has a rated current of 1.75 A. While it can handle high currents, it's crucial to consider the inductor's power handling, core losses, and thermal management to avoid overheating and ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CE1759-ALB Overview

Use the download button to access the CE1759-ALB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CE175, or try a keyword search, such as Data Line Filters

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
