CES-0602C - Nidec Copal

Description: Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 100mA 6VDC

Download CES-0602C Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CES-0602C model

Email notifications will be applied after download.

Send part feedback

Symbol

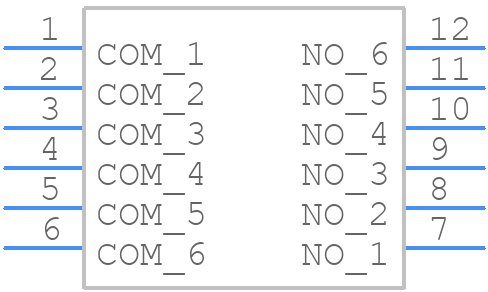

CES-0602C - Nidec Copal - PCB symbol

PCB Footprints

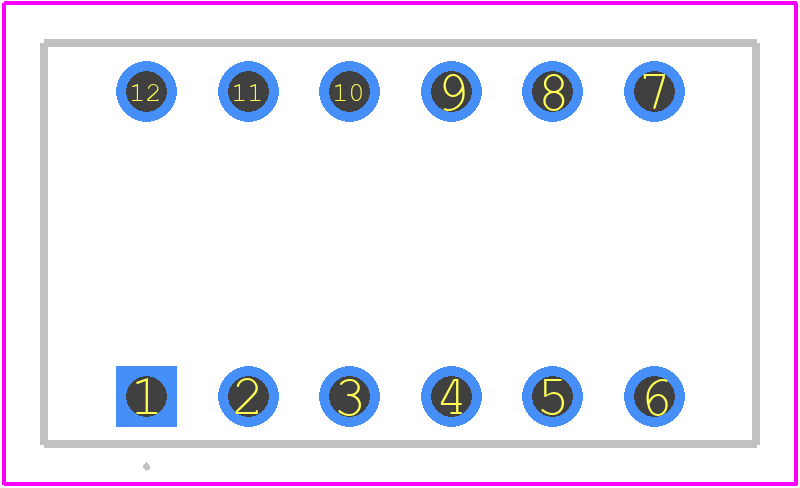

CES-0602C - Nidec Copal PCB footprint - Other - Other - CES-0602C-2

3D Models

CES-0602C - Nidec Copal - 3D model - Other - CES-0602C-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for CES-0602C
Part Number CES-0602C
Manufacturer Nidec Copal
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - CES-0602C-2
Released Date May 6, 2024
Last Modified Date May 6, 2024 5:26 AM UTC
Pinout / Pin List Click Here (Member Only)

CES-0602C Details

Manufacturer Part Number:
CES-0602C
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
15 Weeks
Manufacturer:
Nidec Copal Electronics Corporation
YTEOL:
6
JESD-609 Code:
e4
Switch Type:
SLIDE SWITCH
Terminal Finish:
Gold (Au)
