CES-150-01-G-S footprint, schematic symbol and 3D model by SAMTEC

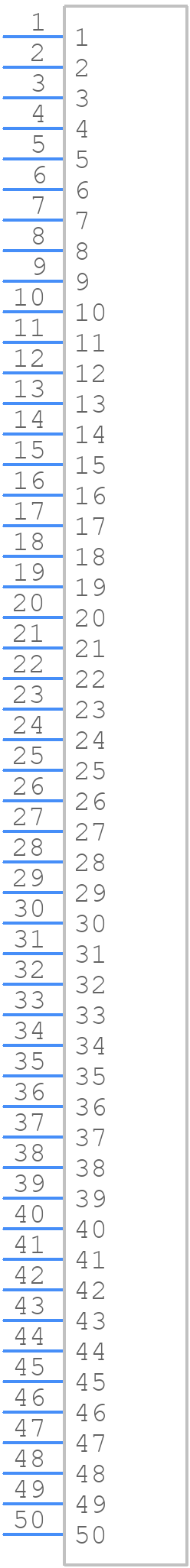

Symbol

click to zoom

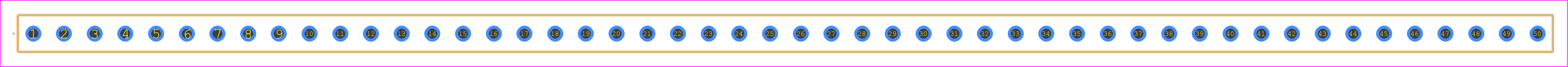

PCB Footprints

CES-150-01-G-S - SAMTEC PCB footprint - Other - Other - CES-150-XX-Y-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CES-150-01-G-S
Part Number CES-150-01-G-S
Manufacturer SAMTEC
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - CES-150-XX-Y-S
Released Date Jun 24, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CES-150-01-G-S Details

Manufacturer Part Number:
CES-150-01-G-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
France, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
LOW PROFILE
Body Breadth:
0.12 inch
Body Depth:
0.2 inch
Body Length:
5 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
10 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
2.224 N
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
20u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1 A
Reference Standard:
UL, CSA
Terminal Length:
0.12 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
50
UL Flammability Code:
94V-0
Withdrawl Force-Min:
1.112 N

CES-150-01-G-S Frequently Asked Questions (FAQs)

The recommended torque for the screws on the CES-150-01-G-S connector is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the CES-150-01-G-S connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B vibration standard, which means it can operate in environments with vibrations up to 15g.
The maximum operating temperature range for the CES-150-01-G-S connector is -55°C to 125°C, according to the datasheet. However, it's recommended to derate the connector's performance at extreme temperatures.
Yes, the CES-150-01-G-S connector is compatible with lead-free soldering processes. Samtec uses a lead-free solderable finish on the connector's contacts, which meets the RoHS and WEEE directives.
The CES-150-01-G-S connector has a sealed design that provides some level of protection against moisture. However, it's not designed for immersion in water or exposure to high humidity environments. If you need a connector for such environments, consider using a connector with a higher IP rating or additional sealing measures.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CES-150-01-G-S Overview

Use the download button to access the CES-150-01-G-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CES-1, or try a keyword search, such as Headers and Edge Type Connectors
