CES-150-01-T-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

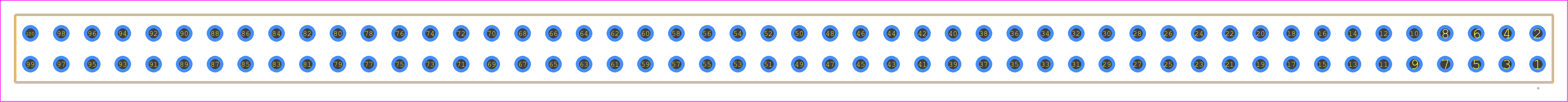

PCB Footprints

CES-150-01-T-D - SAMTEC PCB footprint - Other - Other - CES-150-XX-X-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CES-150-01-T-D
Part Number CES-150-01-T-D
Manufacturer SAMTEC
Pin Count 100
Part Category Connector
Package Category Other
Footprint Name Other - CES-150-XX-X-D
Released Date Jun 18, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CES-150-01-T-D Details

Manufacturer Part Number:
CES-150-01-T-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Direct Group:
CH450508020140910007000401080130203YY0407YY11
Similar Group:
CH450508020140910007000401080130203YY04
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
10
Additional Feature:
LOW PROFILE
Body Breadth:
0.22 inch
Body Depth:
0.2 inch
Body Length:
5 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
10 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
2.224 N
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1 A
Reference Standard:
CSA; UL
Terminal Length:
0.12 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
100
Withdrawl Force-Min:
1.112 N

CES-150-01-T-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the CES-150-01-T-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the CES-150-01-T-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the CES-150-01-T-D connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at temperatures above 100°C (212°F) to ensure reliable operation.
The CES-150-01-T-D connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors, such as the IP67-rated SEARAY series, for applications that require protection against moisture.
The recommended mating cycle for the CES-150-01-T-D connector is 500-1000 cycles, depending on the application and environmental conditions. Samtec recommends following their guidelines for mating cycle testing to ensure reliable operation.
