CES48150-4 - Cosel

Description: Cosel PCB Mount 60W Isolated DC-DC Converter, Vin 40 → 60 V dc, I/O isolation 1 kV ac, 1.5 kV dc, 500 V dc

Download CES48150-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

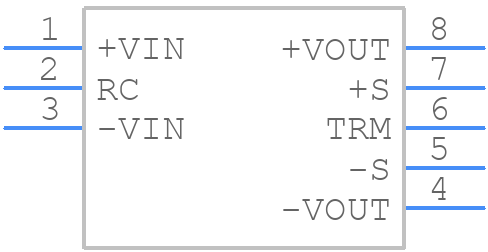

CES48150-4 - Cosel - PCB symbol
click to zoom
PCB Footprints

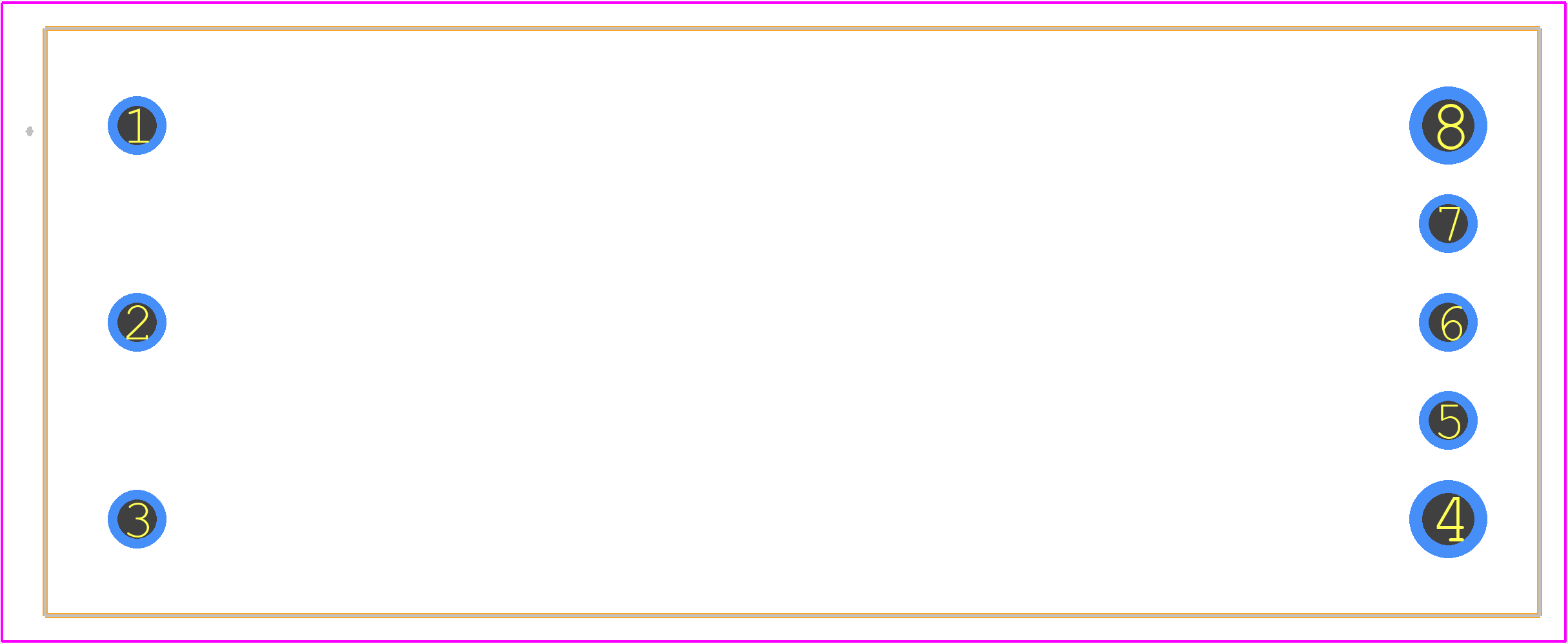

CES48150-4 - Cosel PCB footprint - Other - Other - CES48150-4-2
click to zoom
3D Models
CES48150-4 - Cosel - 3D model - Other - CES48150-4-2
click to zoom

CES48150-4 Details

  • Manufacturer Part Number:

    CES48150-4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    40 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P8

  • Length:

    57.9 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    12 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    8.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    60 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.76 mm

CES48150-4 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 100°C.
  • The CES48150-4 is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure that your system design meets the required safety certifications by following the guidelines in the datasheet and consulting with Cosel's technical support team.
  • The maximum allowable capacitance for the output filter capacitor is 220uF. Exceeding this value may cause instability or oscillation in the converter.
  • Yes, the CES48150-4 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture, including synchronization and current sharing. Consult with Cosel's technical support team for guidance.
  • The recommended input fuse rating is 5A, and a slow-blow fuse type is recommended to ensure reliable operation and protection against input overvoltage and overcurrent conditions.
