CESDLC3V0J4 - Changjiang Electronics Tech (CJ)

CESDLC3V0J4 Details

• Manufacturer Part Number:

  CESDLC3V0J4

• Part Life Cycle Code:

  Contact Manufacturer

• Package Description:

  SOT-353, 5 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Manufacturer:

  Jiangsu Changjiang Electronics Technology Co Ltd

• Additional Feature:

  EXCELLENT CLAMPING CAPABILITY, LOW CAPACITANCE

• Breakdown Voltage-Max:

  5.9 V

• Breakdown Voltage-Min:

  5.3 V

• Breakdown Voltage-Nom:

  5.6 V

• Clamping Voltage-Max:

  8.3 V

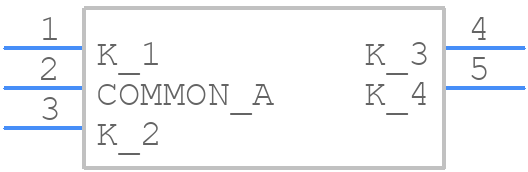

• Configuration:

  COMMON ANODE, 4 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• Forward Voltage-Max (VF):

  0.9 V

• JESD-30 Code:

  R-PDSO-G5

• Non-rep Peak Rev Power Dis-Max:

  20 W

• Number of Elements:

  4

• Number of Terminals:

  5

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity:

  UNIDIRECTIONAL

• Power Dissipation-Max:

  0.15 W

• Rep Pk Reverse Voltage-Max:

  3 V

• Reverse Current-Max:

  1 µA

• Reverse Test Voltage:

  3 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL
