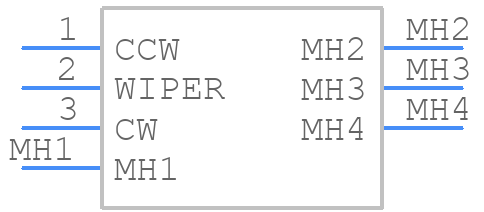

Symbol

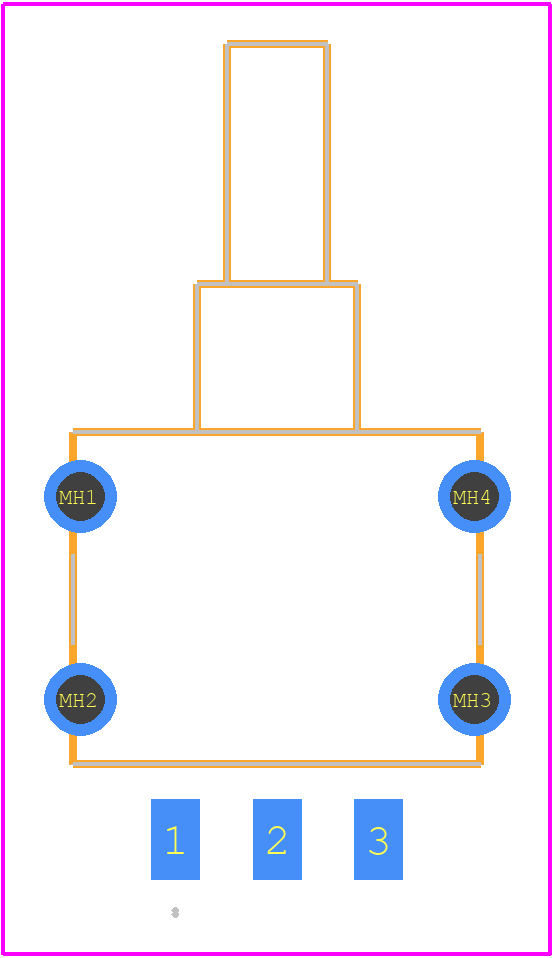

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CF-TA-1DB4-A12
- Part Number CF-TA-1DB4-A12
- Manufacturer Nidec Copal
- Pin Count 7
- Part Category Switch
- Package Category Other
- Footprint Name Other - CF-TA-1DB4-A12-1
- Released Date Nov 10, 2020
- Last Modified Date May 6, 2024 12:51 AM UTC
- Pinout / Pin List Click Here (Member Only)
CF-TA-1DB4-A12 Details
-
Manufacturer Part Number:
CF-TA-1DB4-A12
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Nidec Copal Electronics Corporation
-
JESD-609 Code:
e4
-
Switch Type:
TOGGLE SWITCH
-
Terminal Finish:
Gold (Au)
Trust Checks
Expert Contribution
System Verified
Community Approved
CF-TA-1DB4-A12 Overview
Use the download button to access the CF-TA-1DB4-A12 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CF-TA,
or try a keyword search, such as Toggle Switches
