OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.1 Vrms
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
400 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.12 s
Width:
61 mm
CFB400W-24S24 Frequently Asked Questions (FAQs)
The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliable start-up and shutdown, it is recommended to follow the recommended start-up and shutdown sequences outlined in the datasheet. Additionally, the input voltage should be ramped up and down slowly to prevent inrush currents and voltage stresses on the components.
The derating curves for the converter's output power and efficiency at high temperatures can be obtained from the manufacturer or through characterization testing. Typically, the output power and efficiency will decrease as the temperature increases, and the converter may need to be derated to prevent overheating and ensure reliable operation.
To troubleshoot common issues, it is recommended to follow a systematic approach, starting with visual inspections of the PCB and components, followed by measurements of the input and output voltages, currents, and temperatures. The manufacturer's application notes and troubleshooting guides can also provide valuable insights and guidance.
The converter's EMI and EMC performance can be affected by the PCB layout, component selection, and shielding. To ensure compliance with regulatory standards, it is recommended to follow the manufacturer's guidelines and application notes, and to perform EMI and EMC testing and certification according to relevant standards such as EN 55022 and EN 55024.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB400W-24S24 Overview

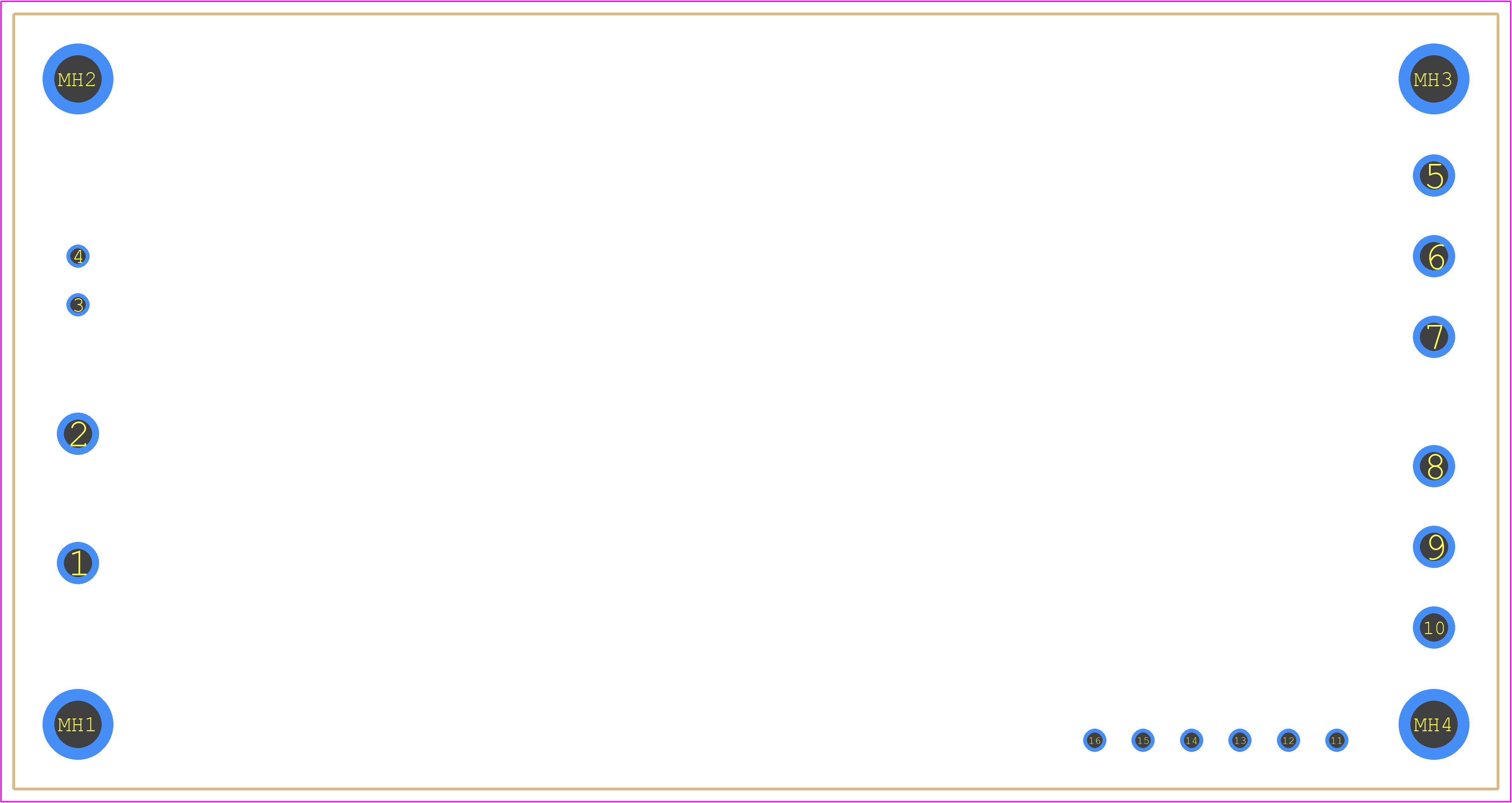

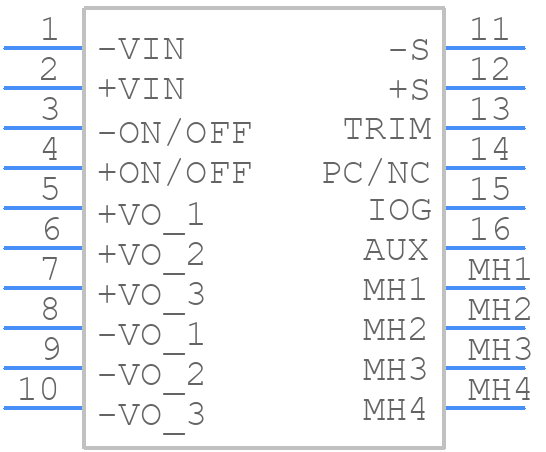

Use the download button to access the CFB400W-24S24 schematic symbol, PCB footprint, and 3D model.
