OVER CURRENT, OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUI, OVER TEMP
Ripple Voltage (Main Out):
0.08484 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
600 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.16 s
Width:
61 mm
CFB600-24S24 Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal performance of the CFB600-24S24 includes keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it is recommended to use a shielded cable for the input and output connections to reduce EMI.
To ensure the reliability of the CFB600-24S24 in high-temperature environments, it is recommended to follow the derating guidelines provided in the datasheet, ensure good airflow around the module, and consider using a heat sink or thermal interface material to reduce the operating temperature.
The CFB600-24S24 is typically used in industrial control systems, telecommunications equipment, and medical devices that require a high-reliability DC-DC converter with a wide input range and high output power.
Yes, the CFB600-24S24 can be used in parallel to increase the output power, but it is recommended to use a master-slave configuration and ensure that the modules are properly synchronized to avoid oscillations and reduce the risk of damage.
The typical efficiency of the CFB600-24S24 is around 85-90% depending on the input voltage, output voltage, and load conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB600-24S24 Overview

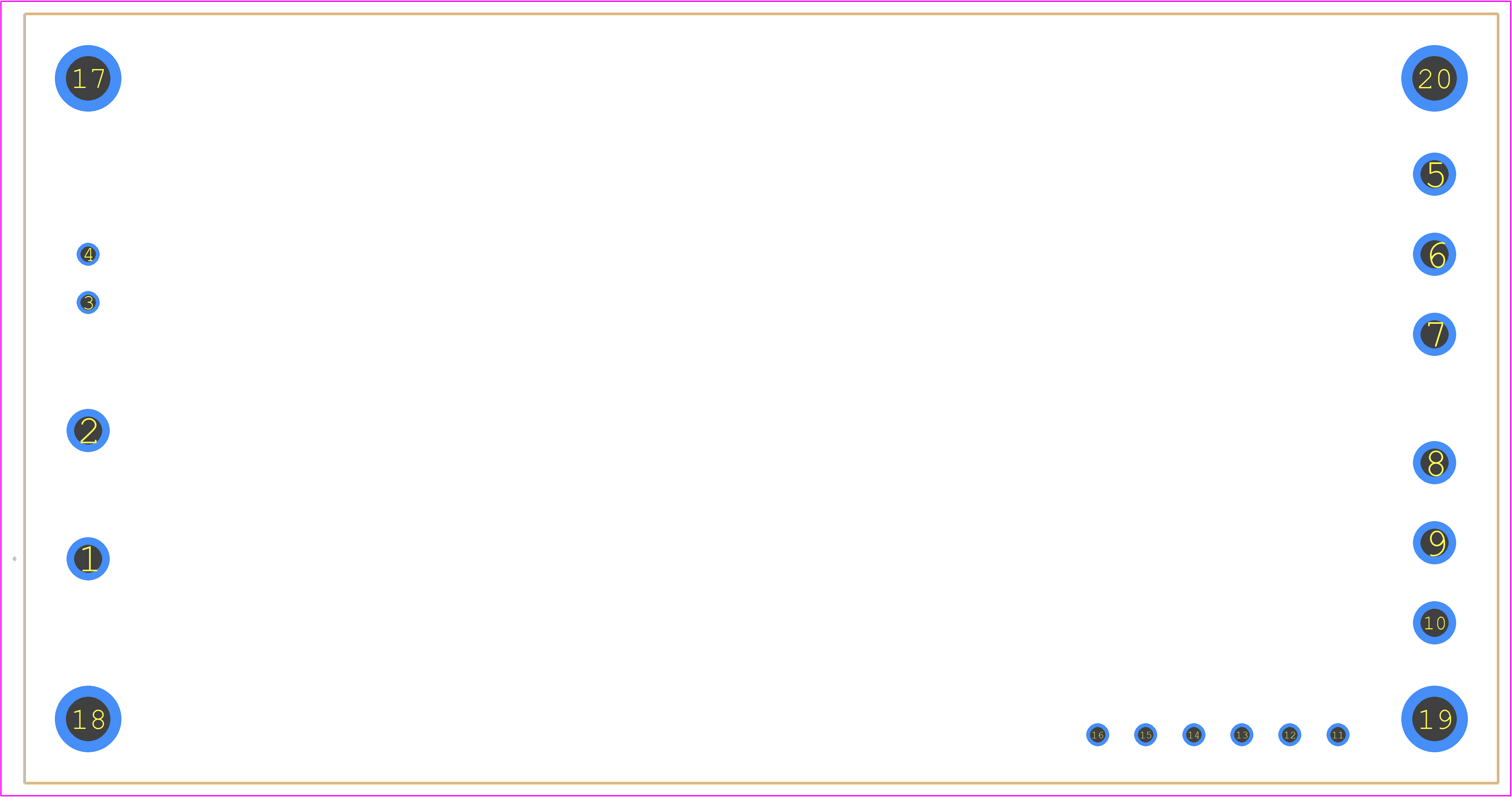

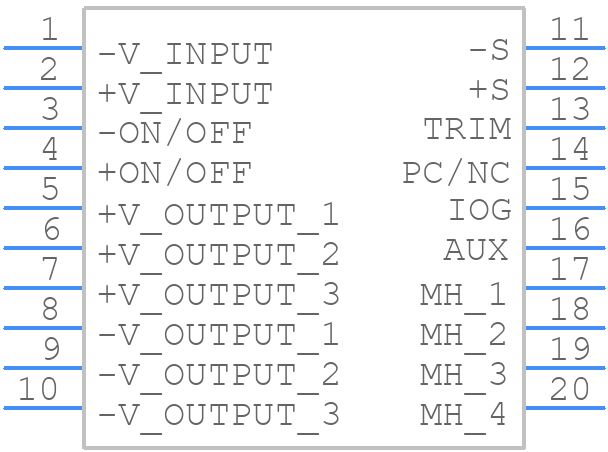

Use the download button to access the CFB600-24S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFB60,
or try a keyword search, such as Power Supply Modules
