OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.12 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
600 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.74 s
Width:
61 mm
CFB600-300S24 Frequently Asked Questions (FAQs)
The recommended PCB layout should ensure good thermal conductivity, with a solid ground plane and adequate copper thickness. A thermal pad or heat sink is recommended to dissipate heat. Consult Cincon's application notes or contact their support team for specific guidance.
The CFB600-300S24 has built-in over-voltage protection (OVP) and under-voltage protection (UVP) to handle input voltage transients and spikes. However, it's still recommended to add external protection components, such as TVS diodes or varistors, to ensure robustness in harsh environments.
The maximum allowable capacitance for the output filter capacitors depends on the specific application and load requirements. As a general guideline, Cincon recommends keeping the output capacitance below 10uF to ensure stability and prevent oscillations. However, it's best to consult Cincon's application notes or contact their support team for specific guidance.
Yes, the CFB600-300S24 can be used in parallel or redundant configurations to achieve higher power ratings or improve system reliability. However, it's essential to follow Cincon's guidelines for paralleling or redundancy, and to ensure proper synchronization and current sharing between units.
The typical efficiency of the CFB600-300S24 is around 92-95% at full load, depending on the input voltage and operating temperature. Efficiency may vary with load and temperature, but Cincon provides detailed efficiency curves and thermal derating information in their datasheet and application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB600-300S24 Overview

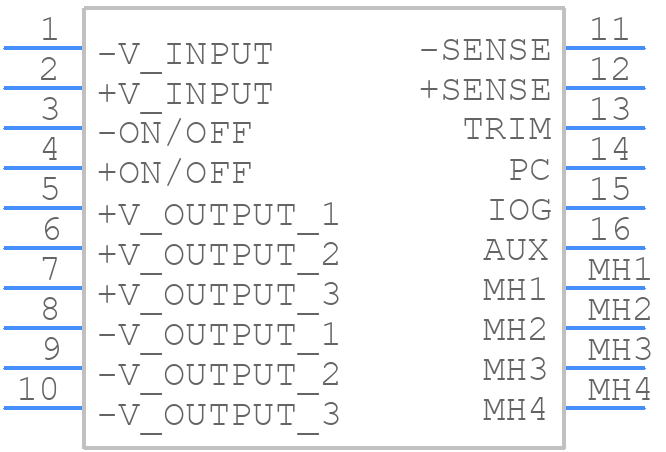

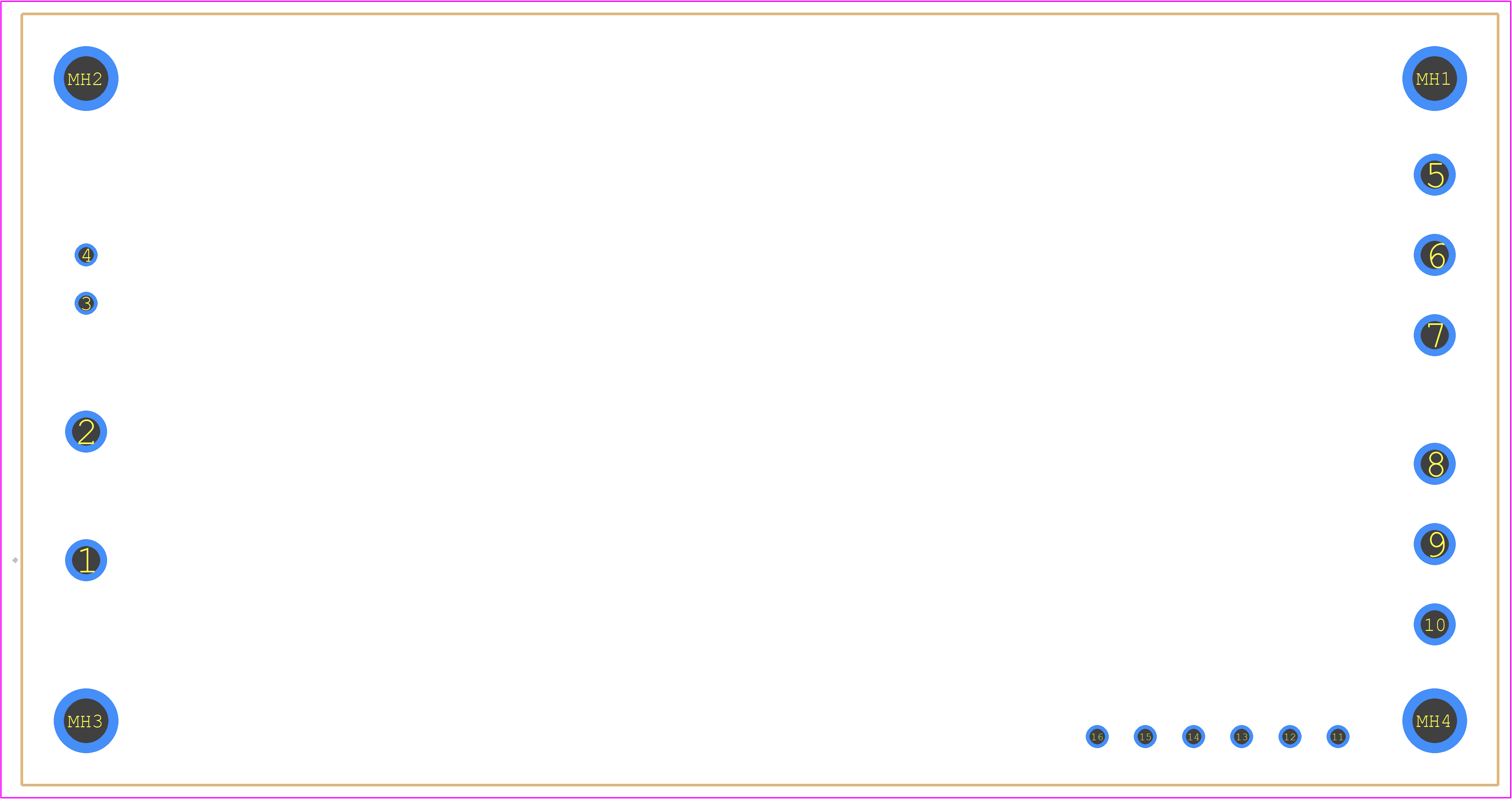

Use the download button to access the CFB600-300S24 schematic symbol, PCB footprint, and 3D model.
