OVER CURRENT, OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUI, OVER TEMP
Ripple Voltage (Main Out):
0.04242 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
600 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.16 s
Width:
61 mm
CFB600-48S12 Frequently Asked Questions (FAQs)
The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) can be used to fill the gap between the module and the heat sink.
To ensure reliability and longevity, it's essential to operate the module within the recommended temperature range and follow proper thermal management practices. Additionally, consider using conformal coating, potting, or encapsulation to protect the module from moisture and contaminants. Regular cleaning and maintenance can also help to prevent failures.
The CFB600-48S12 module is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, ensure proper PCB layout, use shielding, and follow good design practices for signal routing and grounding. Additionally, consider using EMI filters or common-mode chokes to reduce emissions.
Yes, the CFB600-48S12 module can be used in redundant or parallel configurations to achieve higher power ratings or improve system reliability. However, it's essential to ensure proper synchronization and control of the modules to prevent oscillations or instability. Consult with Cincon Electronics Corporation or a qualified engineer for specific guidance on implementing redundant or parallel configurations.
The CFB600-48S12 module meets various safety certifications, including UL, cUL, and CE. Ensure proper installation, operation, and maintenance of the module to prevent electrical shock, fire, or other hazards. Follow the recommended safety guidelines and precautions outlined in the datasheet and user manual.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB600-48S12 Overview

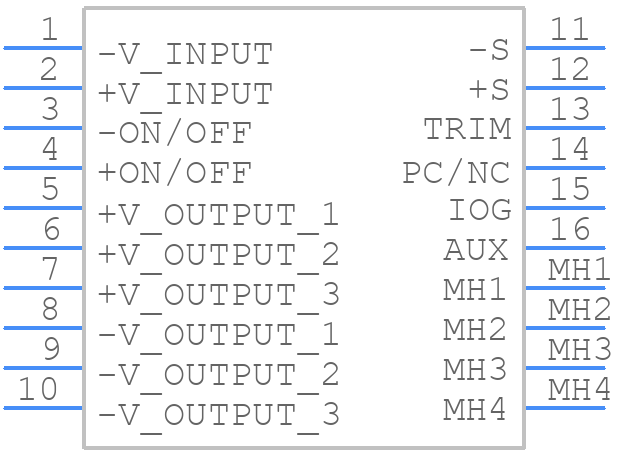

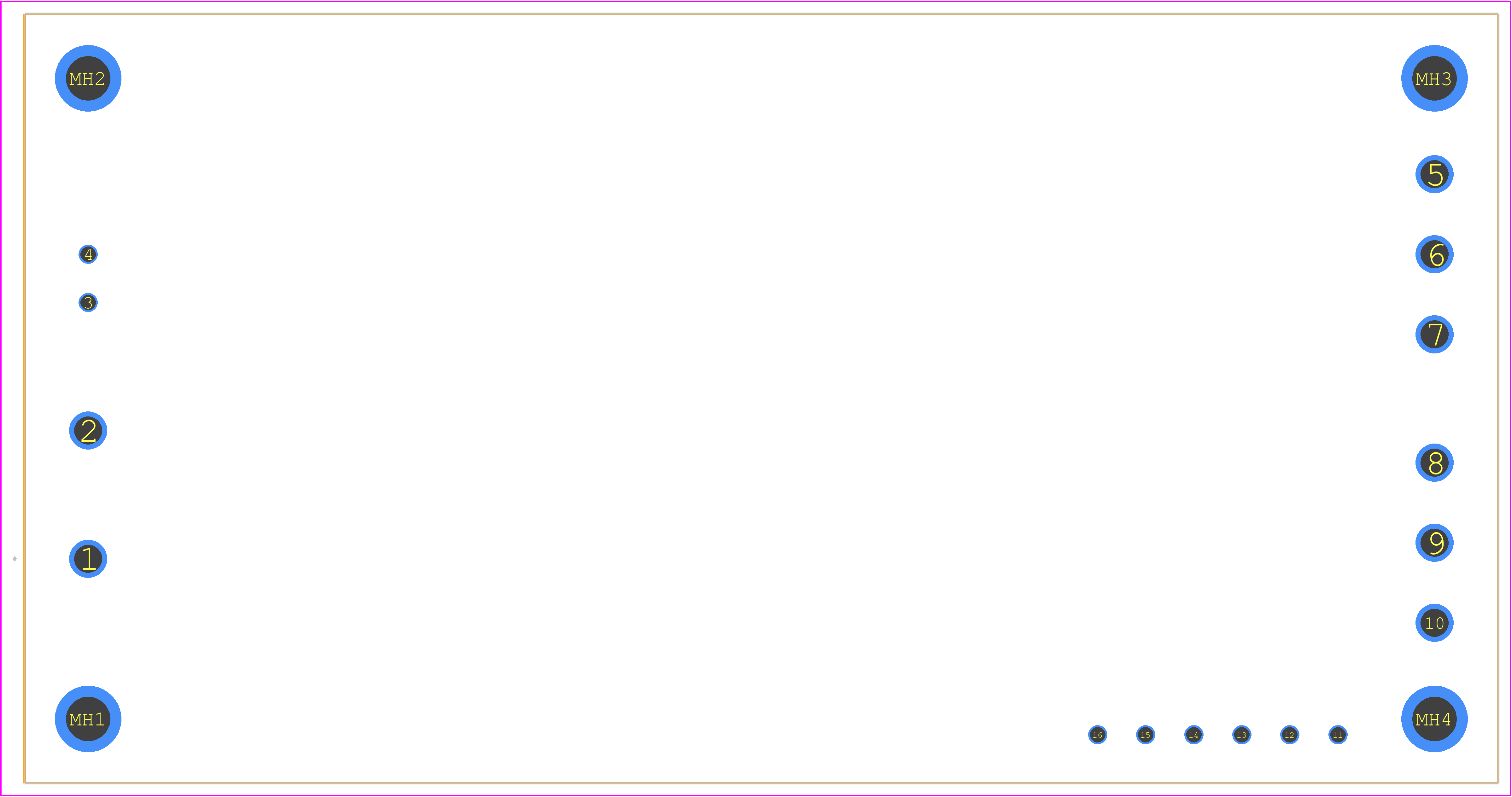

Use the download button to access the CFB600-48S12 schematic symbol, PCB footprint, and 3D model.
