OVER CURRENT, OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUI, OVER TEMP
Ripple Voltage (Main Out):
0.11312 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
608 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.16 s
Width:
61 mm
CFB600-48S32 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output capacitors close to the DC-DC converter, using a solid ground plane, and ensuring good thermal conductivity. Thermal management involves providing adequate airflow, using a heat sink if necessary, and keeping the ambient temperature within the specified range.
To ensure EMC and EMI compliance, follow the recommended PCB layout, use a metal enclosure, and add EMI filters or shielding if necessary. Also, ensure that the input and output cables are properly shielded and routed.
The maximum allowable input voltage deviation is typically ±10% of the nominal input voltage. Exceeding this deviation may affect the output voltage regulation, efficiency, and reliability. It's essential to ensure that the input voltage remains within the specified range.
Yes, the CFB600-48S32 can be used in a redundant or parallel configuration, but it's essential to follow the manufacturer's guidelines and recommendations for synchronization, current sharing, and fault detection.
The typical start-up time for the CFB600-48S32 is around 10-20 ms. This should be considered in the system design to ensure that the power-up sequence and timing are properly managed, especially in applications with multiple power rails or sensitive loads.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB600-48S32 Overview

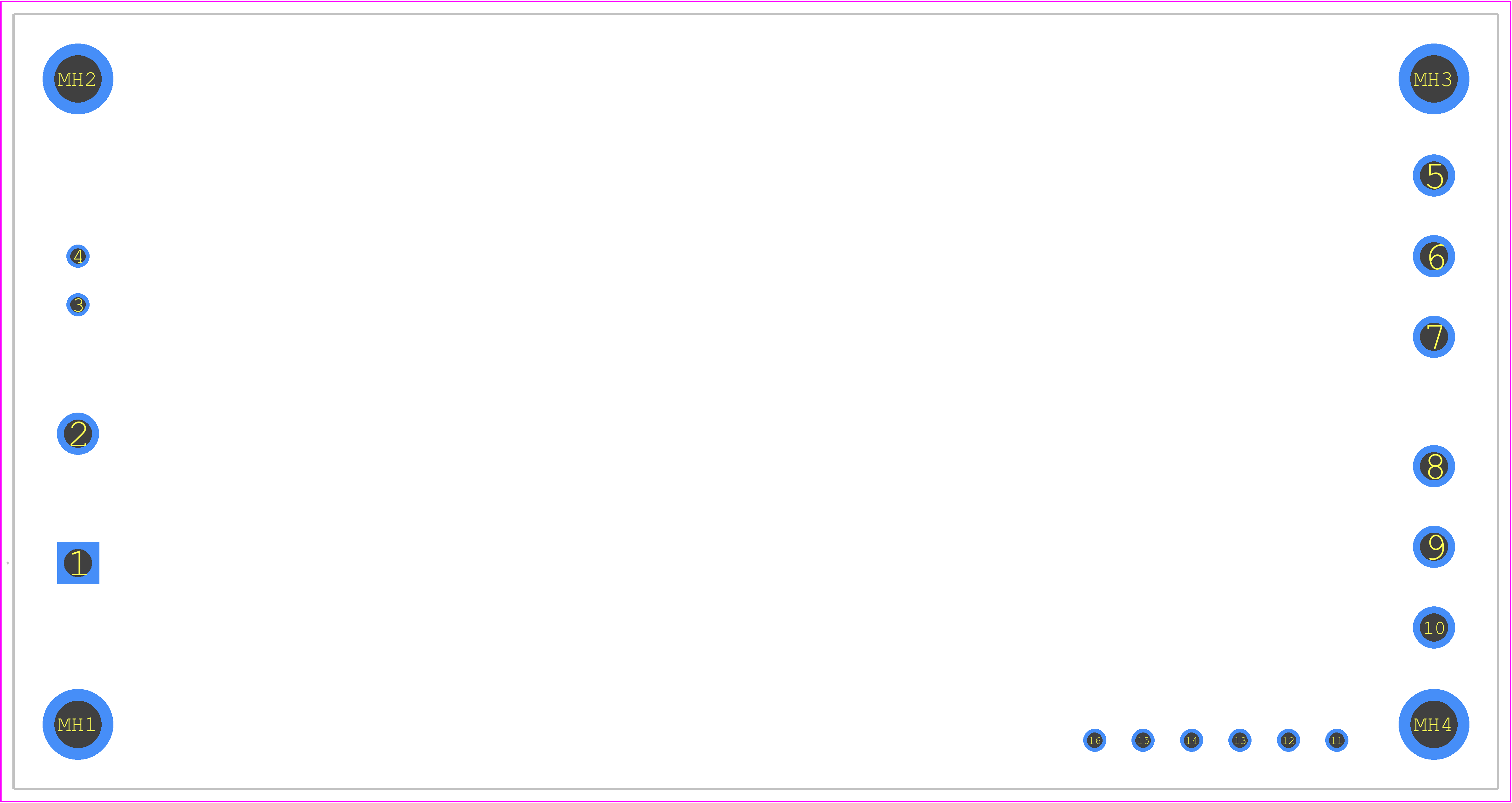

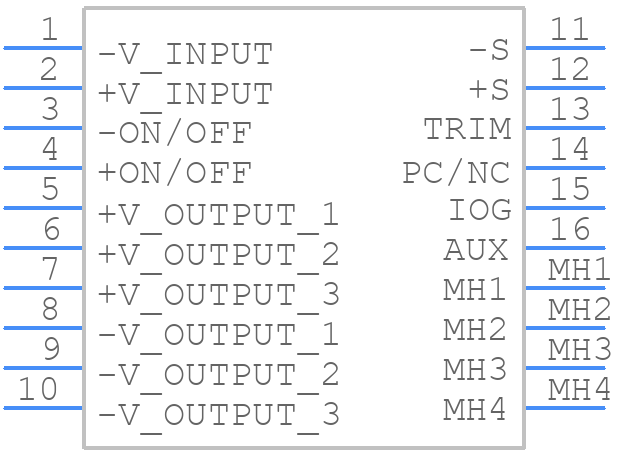

Use the download button to access the CFB600-48S32 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFB60,
or try a keyword search, such as Power Supply Modules
