The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink on the top and bottom sides of the module can help to dissipate heat effectively. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the module and the heat sink.
To ensure reliable and efficient power transmission, it is essential to follow proper wiring and cabling practices, such as using twisted pairs, shielding, and proper termination. Additionally, the system should be designed to minimize electromagnetic interference (EMI) and ensure that the power supply is properly filtered and regulated.
When working with the CFB750-300S24, it is essential to follow proper safety precautions, such as wearing protective gear, ensuring proper ventilation, and avoiding electrical shock hazards. The module should be handled and stored in a clean, dry environment, and it is recommended to follow the manufacturer's guidelines for soldering and desoldering.
To troubleshoot common issues with the CFB750-300S24, it is essential to follow a systematic approach, such as checking the input voltage, output voltage, and current, as well as monitoring the module's temperature. The user should also consult the datasheet and application notes, and contact the manufacturer's technical support if necessary.
The CFB750-300S24 is designed to operate in a wide range of environmental and operating conditions, including temperature, humidity, and vibration. The module can operate in temperatures ranging from -40°C to 85°C, and can withstand humidity up to 95% RH. However, it is essential to consult the datasheet and application notes for specific details on the module's environmental and operating conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CFB750-300S24 Overview

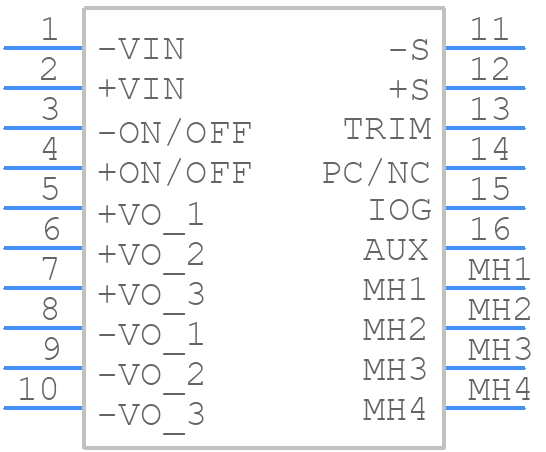

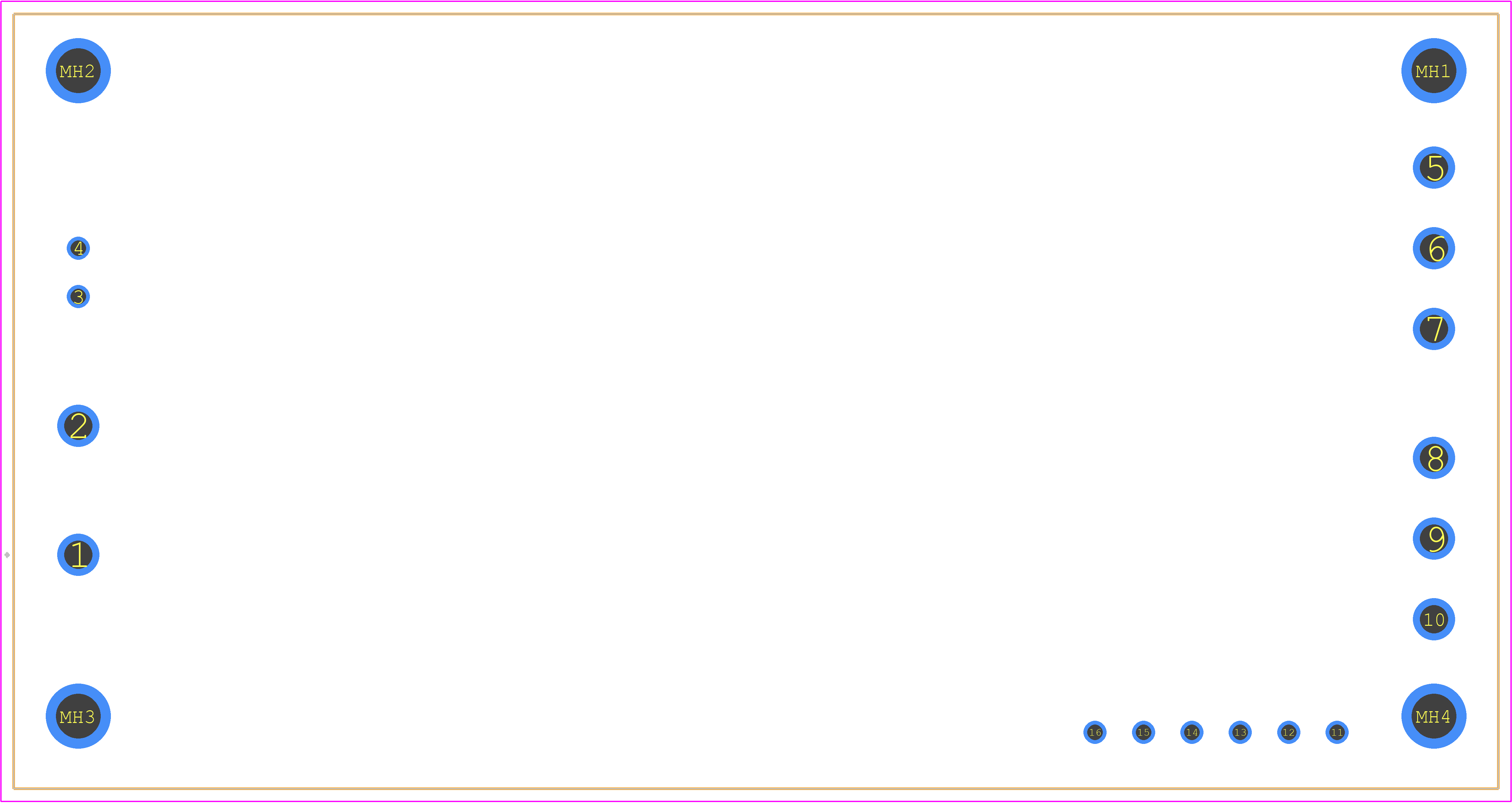

Use the download button to access the CFB750-300S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFB75,
or try a keyword search, such as Power Supply Modules
