Part Image

CFB800-24S56 - Cincon

Description: Isolated DC/DC Converters - Through Hole 800W 18-36Vin 56Vout 14.25A Full Brick

Download CFB800-24S56 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

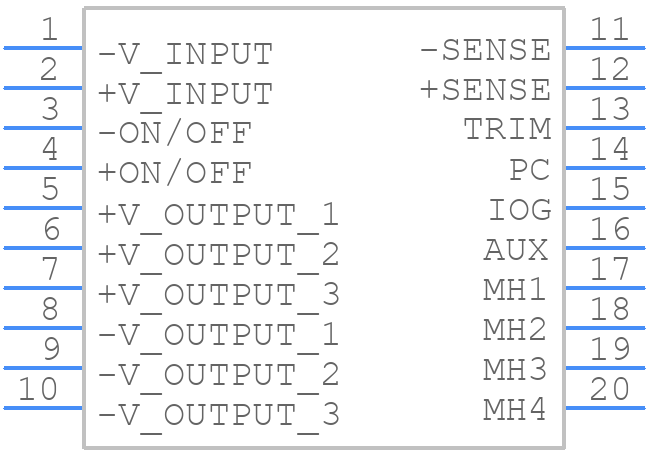

CFB800-24S56 - Cincon - PCB symbol
click to zoom
PCB Footprints

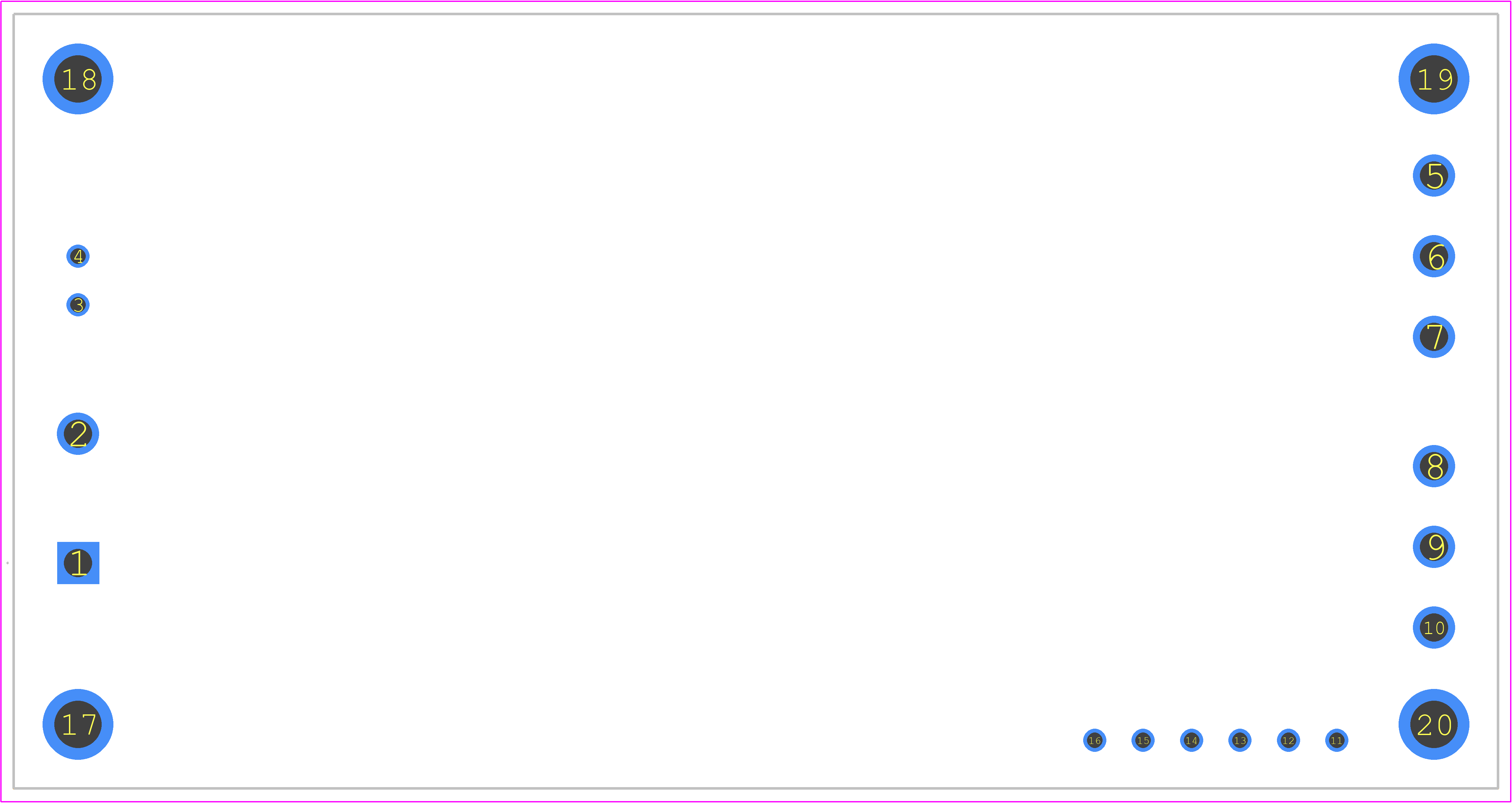

CFB800-24S56 - Cincon PCB footprint - Other - Other - 116.8 mm x 61 mm x 12.7 mm
click to zoom
3D Models
CFB800-24S56 - Cincon - 3D model - Other - 116.8 mm x 61 mm x 12.7 mm
click to zoom

CFB800-24S56 Details

  • Manufacturer Part Number:

    CFB800-24S56

  • Manufacturer:

    Cincon Electronics Corporation

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CFB800-24S56 Overview

Use the download button to access the CFB800-24S56 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFB80, or try a keyword search, such as Power Supply Modules
