CFM12S120-E footprint, schematic symbol and 3D model by Cincon

Symbol

click to zoom

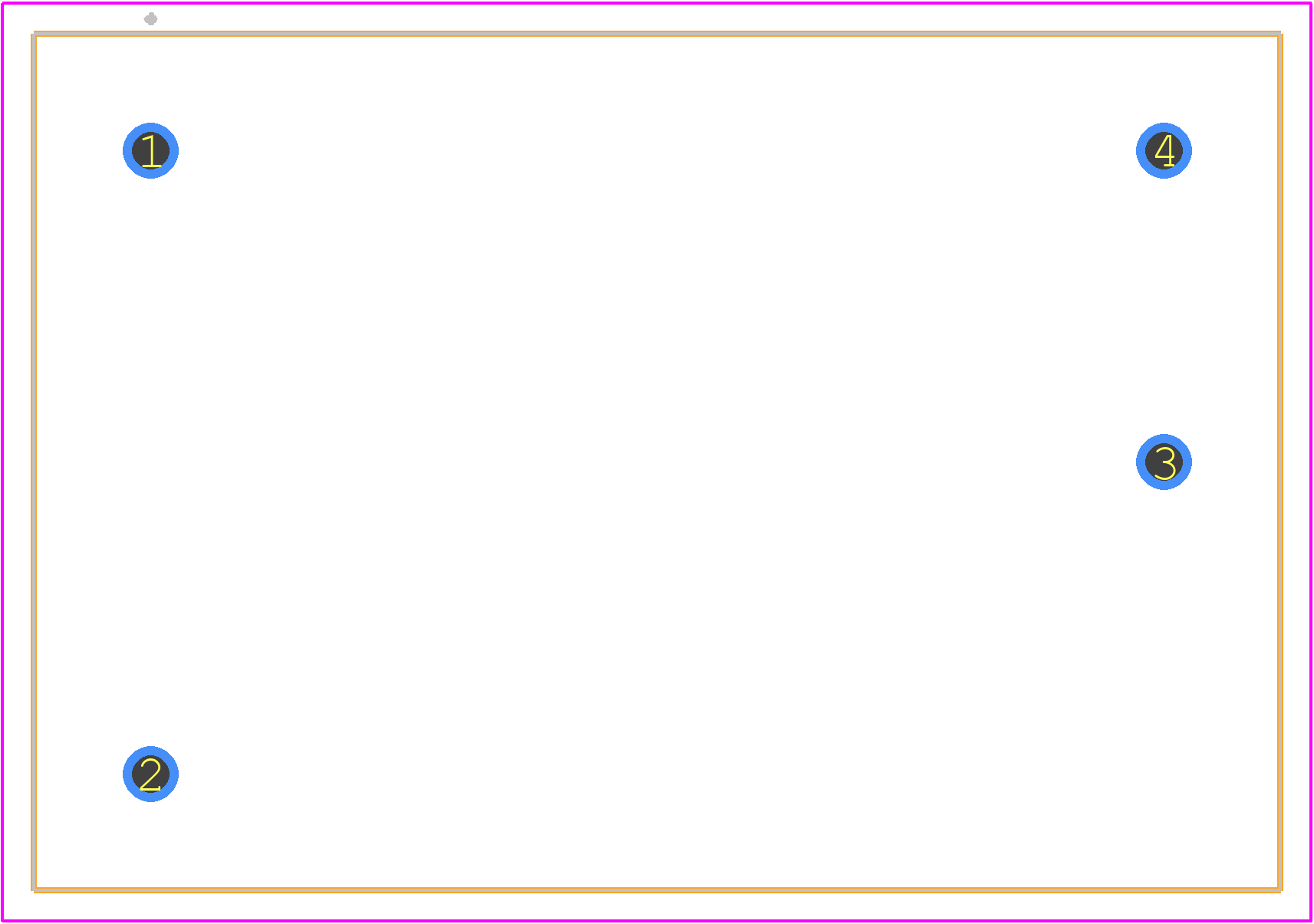

PCB Footprints

CFM12S120-E - Cincon PCB footprint - Other - Other - CFM12S120-E

click to zoom

3D Models

CFM12S120-E - Cincon - 3D model - Other - CFM12S120-E

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CFM12S120-E
Part Number CFM12S120-E
Manufacturer Cincon
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - CFM12S120-E
Released Date Feb 5, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CFM12S120-E Details

Manufacturer Part Number:
CFM12S120-E
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Cincon Electronics Corporation
YTEOL:
6
Additional Feature:
120 -370VDC INPUT ALSO AVAILABLE
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
IEC, UL, EN
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
87%
Input Voltage-Max:
264 V
Input Voltage-Min:
90 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XDMA-P4
Length:
40.64 mm
Line Regulation-Max:
1%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
4
Operating Temperature-Max:
75 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
12.24 V
Output Voltage-Min:
11.76 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER VOLTAGE; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.04242 Vrms
Seated Height-Max:
20.1 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
12 W
Trim/Adjustable Output:
NO
Width:
27.94 mm

CFM12S120-E Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the component on a 2-layer or 4-layer PCB with a large copper area for heat dissipation. The component should be placed near a corner of the PCB to allow for maximum airflow.
To ensure reliable operation in high-humidity environments, it is recommended to apply a conformal coating to the component and PCB, and to follow proper storage and handling procedures to prevent moisture absorption.
The derating curves for the CFM12S120-E can be obtained from Cincon Electronics Corporation's application engineers or through their website. The curves provide guidance on reducing the component's power rating at high temperatures.
The CFM12S120-E is a commercial-grade component, but Cincon Electronics Corporation offers a high-reliability version of the component that meets the requirements of high-reliability and aerospace applications. Contact Cincon Electronics Corporation for more information.
The recommended soldering profile for the CFM12S120-E involves a peak temperature of 240°C, a dwell time above 217°C of 60-90 seconds, and a cooling rate of 4°C/second. Consult the datasheet for more detailed information.

Trust Checks

Expert Contribution

System Verified

Community Approved

CFM12S120-E Overview

Use the download button to access the CFM12S120-E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CFM12, or try a keyword search, such as Power Supply Modules
