CFM1505S footprint, schematic symbol and 3D model by Cincon

Symbol

click to zoom

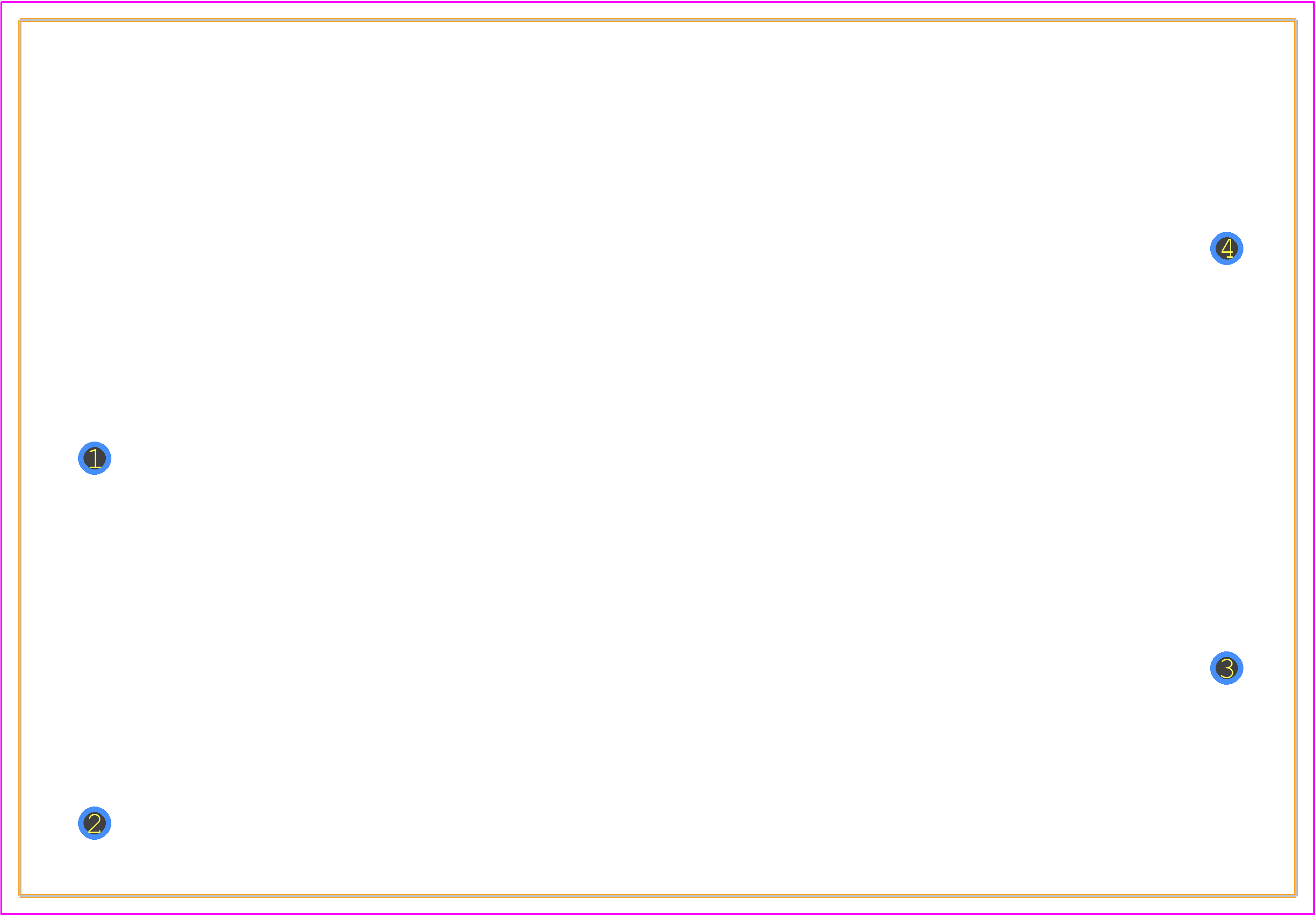

PCB Footprints

CFM1505S - Cincon PCB footprint - Other - Other - CFM1505S-2

click to zoom

3D Models

CFM1505S - Cincon - 3D model - Other - CFM1505S-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CFM1505S
Part Number CFM1505S
Manufacturer Cincon
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - CFM1505S-2
Released Date Dec 11, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CFM1505S Details

Manufacturer Part Number:
CFM1505S
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
PACKAGE
ECCN Code:
EAR99
Manufacturer:
Cincon Electronics Corporation
YTEOL:
0
Additional Feature:
IT ALSO OPERATED AT 120 TO 370 VDC INPUT
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Efficiency (Main Output):
83%
Input Voltage-Max:
264 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
100 V
JESD-30 Code:
R-XXMA-X
Length:
65 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Operating Temperature-Max:
70 °C
Output Current-Max:
0.63 A
Output Voltage-Max:
24.24 V
Output Voltage-Min:
23.76 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER VOLTAGE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.08484 Vrms
Screening Level:
IEC/EN/UL 62368-1
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
15 W
Trim/Adjustable Output:
NO
Width:
45 mm

CFM1505S Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the CFM1505S near a thermal pad or a heat sink, and ensuring good airflow around the component. A minimum of 1mm clearance around the component is recommended.
To ensure reliable start-up of the CFM1505S, it is recommended to use a soft-start circuit to limit the inrush current, and to ensure that the input voltage rises slowly (typically 10-20ms) to prevent voltage spikes.
The maximum allowed capacitance for the output filter capacitor is 220uF. Exceeding this value may cause instability or oscillation in the output voltage.
The CFM1505S is rated for operation up to 85°C ambient temperature. However, derating may be necessary for high-temperature applications. Consult the datasheet for derating curves and guidelines.
To troubleshoot output voltage instability or oscillation issues, check the input voltage, output capacitor value, and PCB layout. Ensure that the input voltage is within the recommended range, the output capacitor value is within the recommended range, and the PCB layout is optimized for thermal performance and minimal noise coupling.
