Part Image

CFM61S360 - Cincon

Description: Switching Power Supplies AC-DC Module, 60 Watt, Open Frame, 90-264VAC Input, 36VDC Output

Download CFM61S360 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CFM61S360 - Cincon - PCB symbol
click to zoom
PCB Footprints

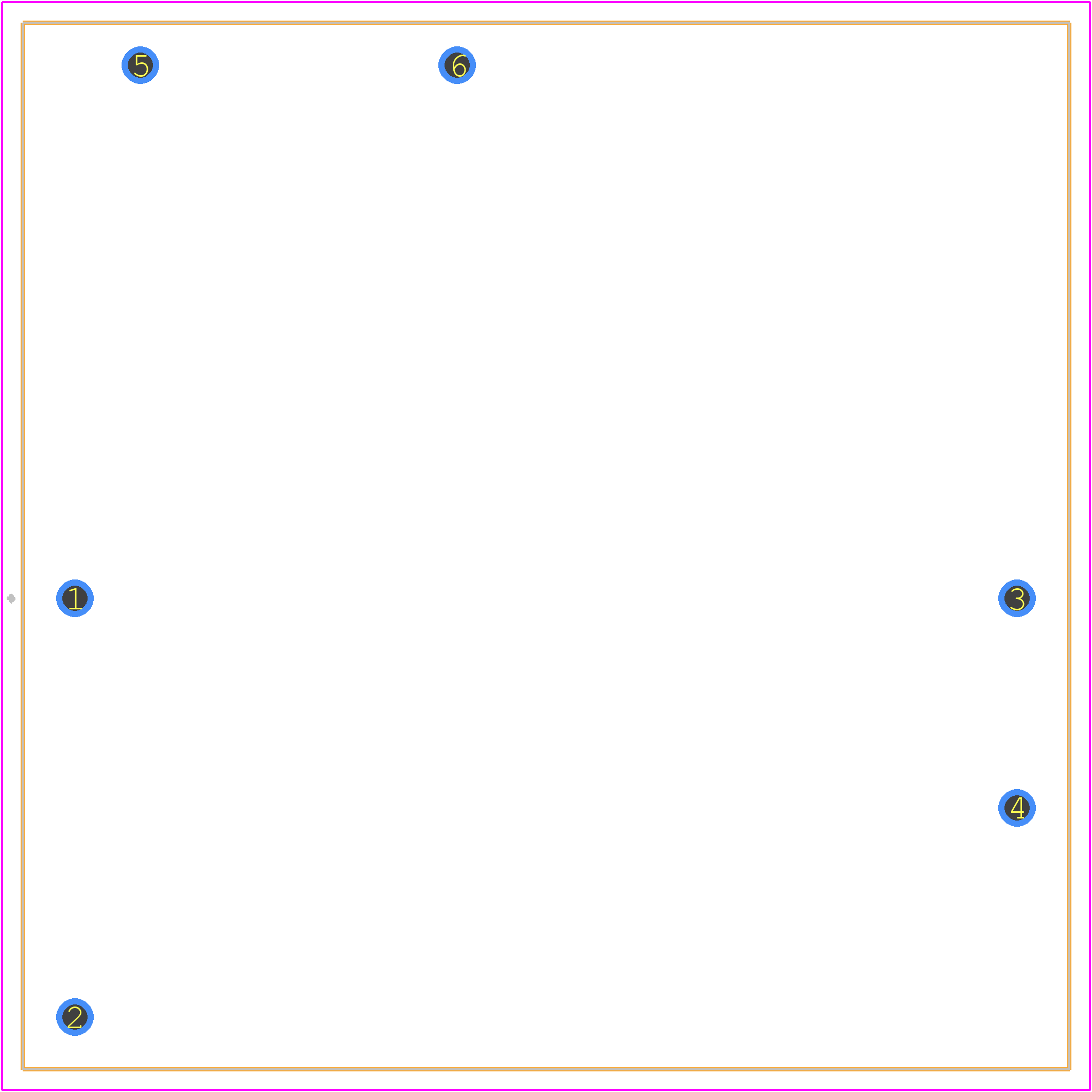

CFM61S360 - Cincon PCB footprint - Other - Other - CFM61S360-2
click to zoom
3D Models
CFM61S360 - Cincon - 3D model - Other - CFM61S360-2
click to zoom

CFM61S360 Details

  • Manufacturer Part Number:

    CFM61S360

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CFM61S360 Overview

Use the download button to access the CFM61S360 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CFM61, or try a keyword search, such as Power Supply Modules
